Features & Benefits

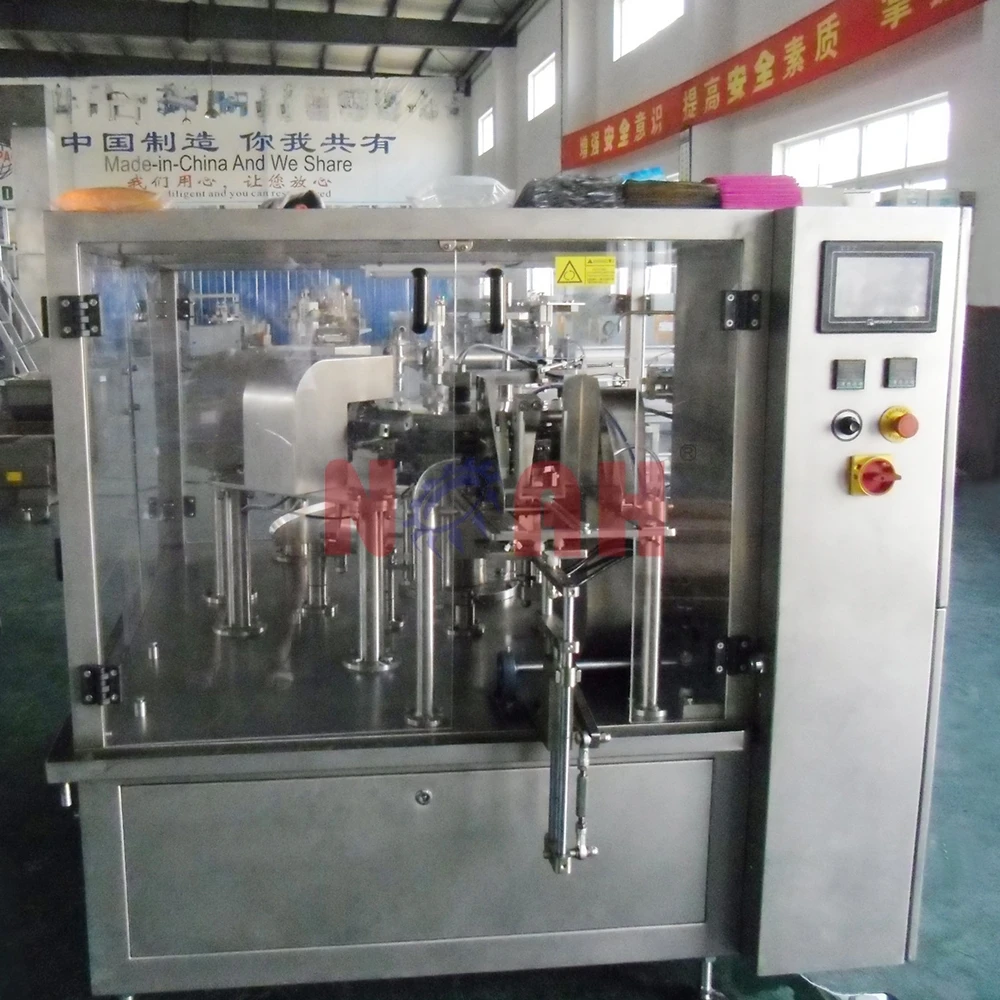

Integrated Combined Structure: Integrates bag feeding, liquid filling and sauce filling functions in one unit, realizing streamlined packaging workflow.
High Precision Packaging: Adopts advanced control system to ensure accurate metering and error-free packaging with stable and reliable performance.
User-Friendly Operation: Equipped with intuitive touch screen interface, simple operation and low learning cost for operators.
Automatic Error Detection: Built-in pouch inspection system identifies abnormal bags to reduce material waste and defective products.

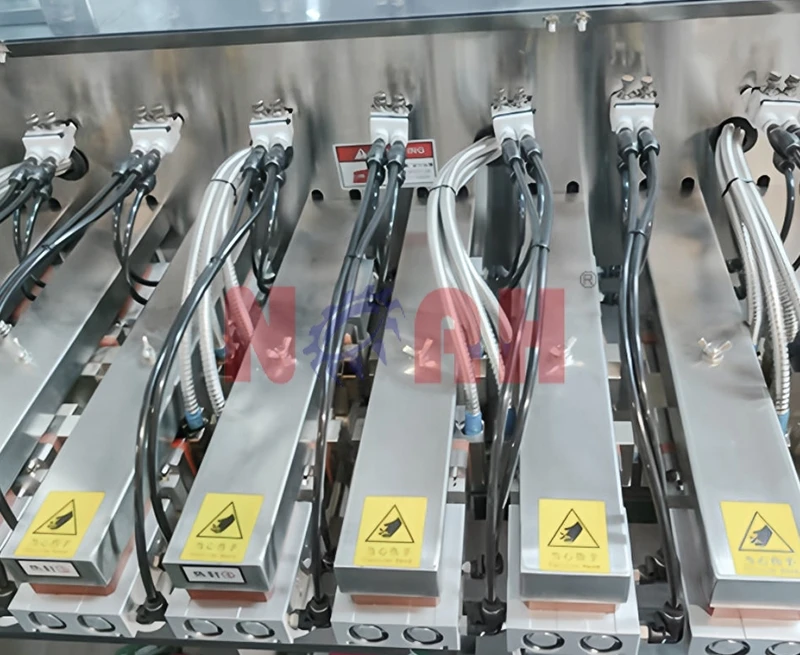

Multi-safety Protection: Intelligent safety devices alarm for abnormal air pressure and heater disconnection, ensuring safe and stable operation.
Flexible Bag Size Adjustment: Electric motor controlled bag width adjustment, compatible with various bag specifications for strong versatility.
High Production Efficiency: Optimized packaging process greatly improves productivity, effectively reducing production waste and operating costs.
Application
Applicable Materials: Suitable for various liquids and sauces, including fruit juice, tomato sauce, seasoning sauce, chili sauce, liquid soap and detergent.
Applicable Industries: Widely applied in food & beverage, daily chemical and personal care industries for automatic liquid bag packaging.
Specitications
|
Model |
LGL200 |
LGL300 |
|
Pouch material |
Laminated film, PE, PP etc |
|
|
Working position |
Six position |
|
|
Pouch pattern |
Zipper bag, Spout bag, Stand-up pouches, Plane bag, Handbags, Zipper stand-up pouches bag |
|
|
Pouch size |
W: 100-210mm L: 100-350mm |
W: 200-310mm L: 100-450mm |
|
Filling range |
5-1500g |
100-2000g |
|
Weigher accuracy |
±1% |
|
|
Speed |
25-35 Bags/min (The speed depends on the product status and filling weight) |
|
|
Voltage |
3-Phase 380V 50HZ/60HZ |
|
|
power |
3.0kw |
3.2kw |
|
Compress air |
0.6m3/min (compress air is supplied by user) |
|
