Features & Benefits

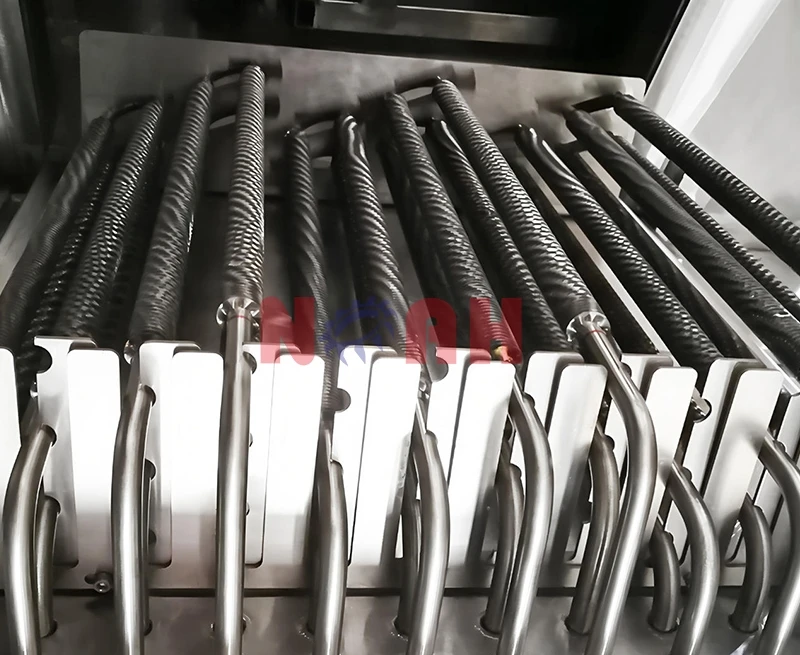

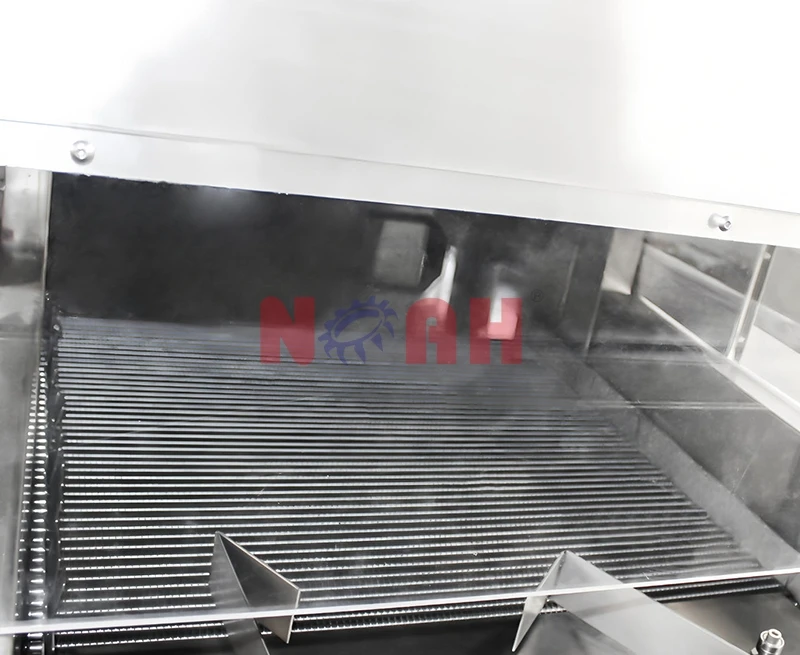

Integrated tunnel structure with three zones: preheating, heating, and cooling, using hot air laminar flow for instant high-temperature sterilization and depyrogenation.
Advanced PLC control system with HMI operation for real-time monitoring, fault display (cause, location, solution), and automatic temperature curve recording.
Equipped with power-off prevention self-heating device in high-temperature section, eliminating fire risks.
Presettable heating and running process parameters, with automatic status display and record printing.
Adjustable circulating airflow to ensure uniform temperature distribution inside the tunnel.
Multiple temperature measuring points installed inside the tunnel and at ports.
Built-in PAO test ports for high-efficiency filter verification.
Full design in compliance with pharmaceutical GMP requirements.
Can be interlocked with washing machines and filling machines for automated production line integration.
Application
Suitable for drying, sterilization and depyrogenation of pharmaceutical glass containers including ampoules, antibiotic vials, oral liquid bottles and similar containers.
Mainly used in the pharmaceutical industry for sterile preparation production lines requiring high-temperature depyrogenation.
Ideal for integrated, automated and GMP-compliant pharmaceutical processing lines.
Specitications
|
Product Model |
ASMR620-35 （38）（Air cooling） |
ASMR620-43 （Air cooling） |
ASMR620-48 （Air cooling） |
ASMR800-55 （Air cooling） |
ASMR1250-6000（Air cooling） |
ASMR620-43 （Air cooling） |
ASMR620-48 （Air cooling） |
ASMR800-55 （Air cooling） |
|
Applicable specifications (ml) |
1-20ml (Ampoule); 2-25ml (Vial, Oral liquid) |
|||||||
|
Effective width of conveyor belt (mm) |
620 |
620 |
620 |
800 |
1,250 |
620 |
620 |
800 |
|
Max sterilizing temperature (°C) |
350 |
|||||||
|
Temperature at bottle output (°C) |
< 40 |
|||||||
|
Water consumption and temperature |
/ |
/ |
/ |
/ |
/ |
|
Temprature: 8℃ cooling water Cooling water consumption: 3T/h |
|
|
Air exhaust volume (m3/h) |
3,000-4,100 |
3,500-4,100 |
3,500-4,100 |
6,600-8,200 |
8,500-9,500 |
300 |
300 |
300 |
|
Sterilization in cooling section |
Not included |
Not included |
Not included |
Not included |
Not included |
Not included |
Included |
Included |
|
Power (kw) |
27.7kw (including heating power 21.6kw) |
51kw (including heating power 43kw) |
71kw (including heating power 60kw) |
78kw (including heating power 60kw) |
196kw (including heating power 172kw) |
51kw (including heating power 43kw) |
104kw (including heating power 60kw; cooling section sterilization power 32.4kw) |
152kw (including heating power 78kw, cooling section sterilization power 46.8kw) |
|
Cleanness |
Class 3 of international standard (Class 100 of US standard) |
|||||||
|
Overall dimensions(changeable upon request) (L × W × H) (mm) |
3,550×1,760 ×2,343 |
4,388×1,465 ×2,445 |
4,738×1,614 ×2,445 |
5,480×1,950 ×2,210 |
6,200×2,936 ×2,670 |
4,385×2,050 ×2,385 |
4,887×1,831 ×2,343 |
6,000×1,870 ×2,370 |
|
Weight (kg) |
2,300 |
3,000 |
3,500 |
4,000 |
6,000 |
3,500 |
4,000 |
4,500 |
