Features & Benefits
Adopts manual bagging and automatic metering, simplifying operation and ensuring quantitative accuracy.

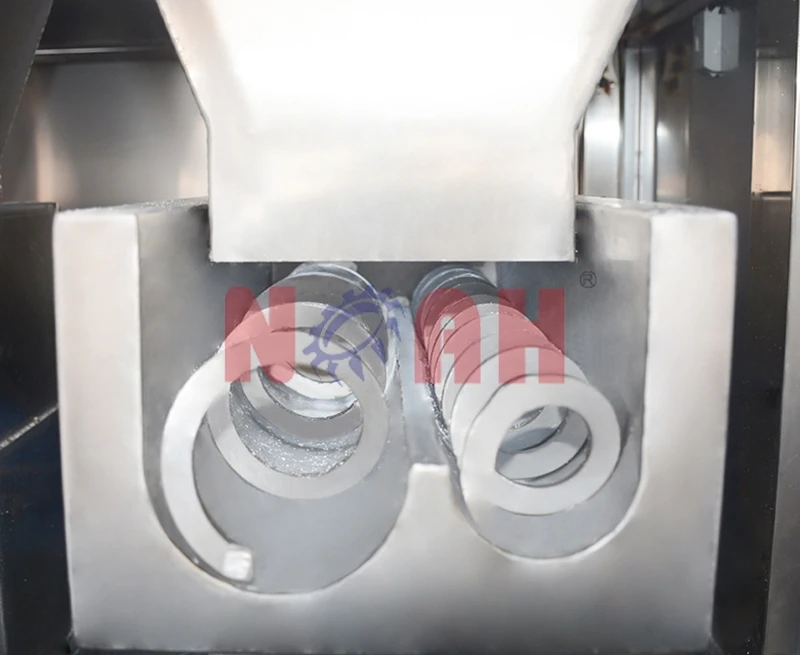

Both large and small feeding adopt vibration feeding, achieving stable and uniform material supply.
Packaging specifications are continuously adjustable, adapting to diverse packaging needs without replacing parts.
Weighing accuracy is independent of material specific gravity, ensuring consistent and reliable quantitative results.
Equipped with computer network serial interface, facilitating intelligent management and data connection.

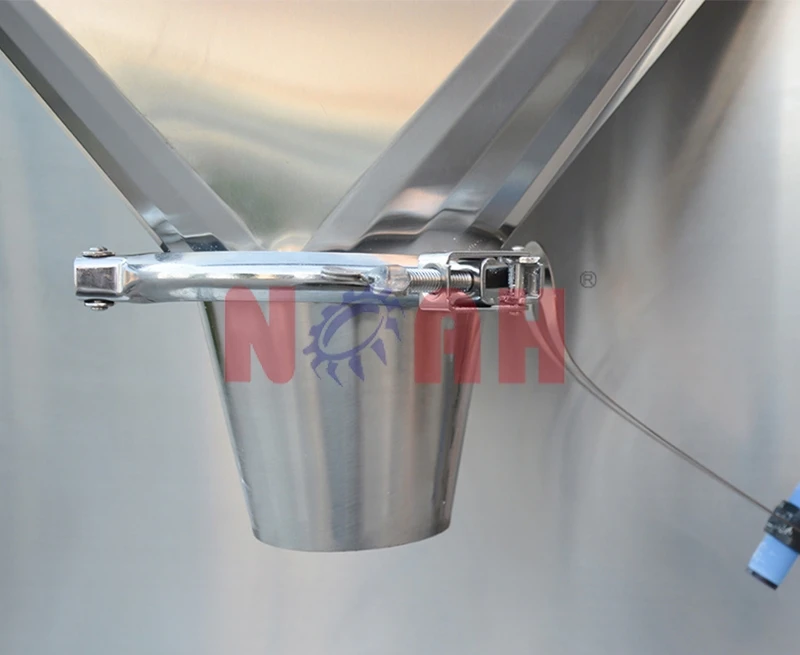

Designed with movable mask, movable weighing hopper and clip-on receiving nozzle, making cleaning and maintenance easier.
Optional dust-removing receiving nozzle and stirring motor, customizable according to production needs.
Application
Applicable Products: Suitable for the quantitative packaging of granular products such as washing powder, monosodium glutamate, chicken essence, corn, wheat, rice and other similar granular materials.
Applicable Scenarios: Ideal for small, medium and large-scale production environments that require manual bagging and automatic quantitative packaging, widely used in food, daily chemical, grain and other related industries.
Specitications
|
Model |
CFG-0.25 |
CFG-1 |
CFG-2 |
CFG-6 |
|
Weighing range |
30-250g |
100-1000 g |
200-2000g |
500-6000g |
|
Packing specification |
30-5009 |
100-2000g |
200-4000g |
500-12kg |
|
Single scale error |
≤±19 |
≤±1g |
≤±9 |
≤±4g |
|
Packaging speed |
42-15 b/min |
32-9b/min |
28-9b/min |
22-6 b/min |
|
Power supply |
220V/50/Hz |
220V/50/Hz |
220V/50/Hz |
220V/50/Hz |
|
Machine power |
500 w |
500 w |
500 w |
500 w |
|
Weight |
160 kg |
180 kg |
200 kg |
220 kg |
|
Machine Size |
740×760×1820mm |
870×830×2100mm |
920×860×2200mm |
940×860×2340mm |
