Features & Benefits
Custom bottle feeder: Delays feeding to avoid jams, delivers bottles one by one; no-bottle no-filling logic enables intelligent, labor-saving production.

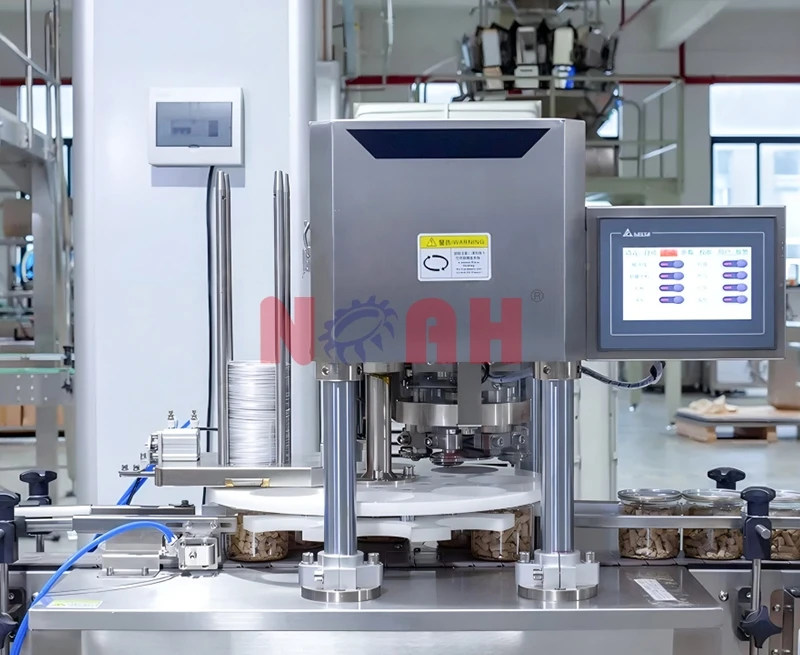

Custom cap feeder: Automatically supplies caps, eliminating manual cap handling and boosting efficiency.

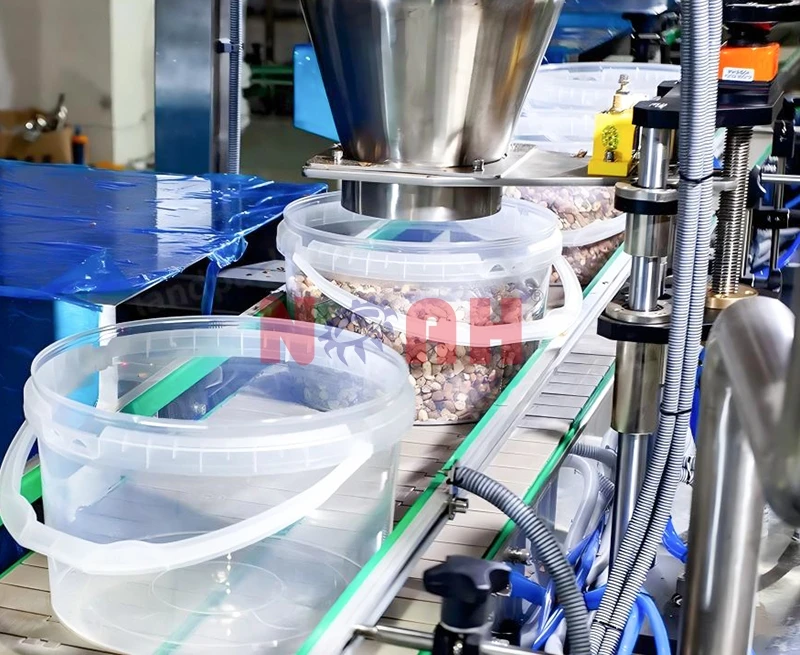

Equipped with multi-head weigher, delivering fast weighing speed, minimal error, high filling precision, stable performance, energy-saving operation and long service life.

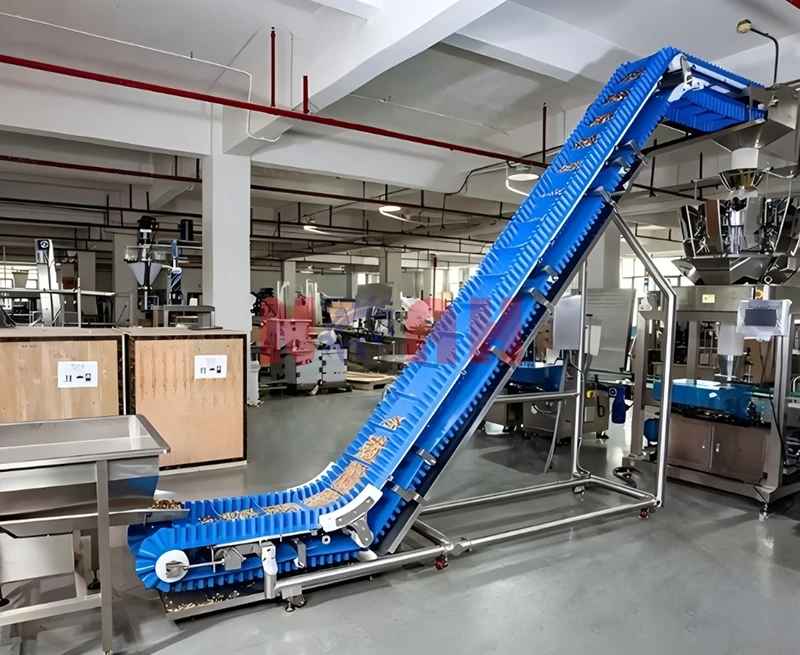

Feeding system includes vibrator (2L food-grade hopper) and Z-type lifting loader, fully automatic to reduce labor costs.
Separate touch screen panels for weighing and filling functions; visual parameters simplify machine debugging, with customizable operation language.

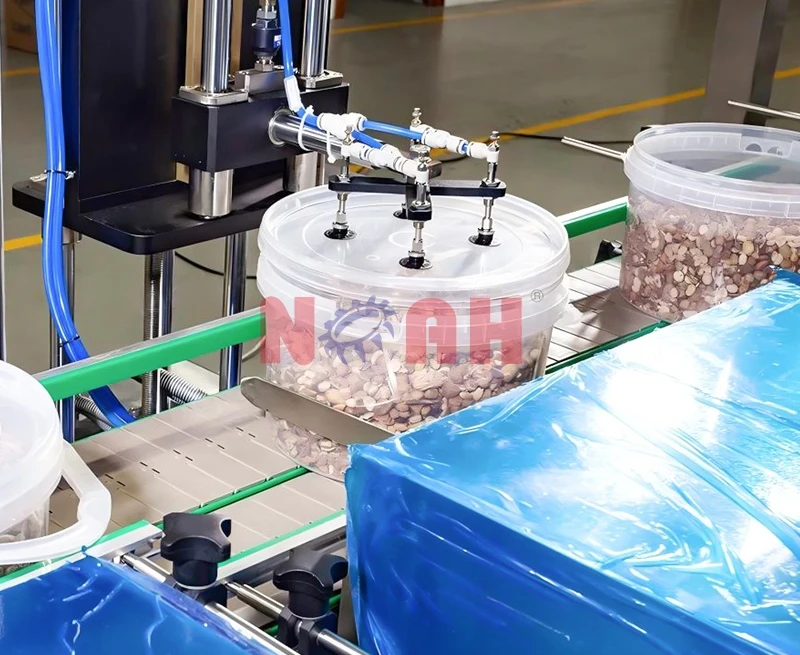

Capping heads with quickly adjustable spacing and height, adaptable to different cap specifications to ensure consistent capping quality.
Meets CE standards with multiple safety warning functions; product-contact parts are food-grade with easy-clean design, ensuring safe and reliable production.
Application
Applicable Materials: Suitable for quantitative weighing and filling of various granular and solid materials, including eclair chocolate, mini dried fruits, gummy candies, nuts, preserved fruits, Guoba (rice crust), sugar, salt, seeds, rice, sesame, monosodium glutamate and other uniform small particles.
Applicable Containers: Compatible with mixed plastic jars and bottles, supporting diversified packaging formats.
Core Industries: Ideal for food, snack, condiment and related industries requiring automated, intelligent and hygienic granular product filling and capping.
Specitications
|
Model |
LD-AF01 |
|
Filling Range |
10-2000g (Customizable) |
|
Filling Speed |
120 PCS/min |
|
Measurement accuracy |
0.3-1.5% |
|
Power |
1 KW |
|
Working power supply |
220V,50Hz |
|
Working pressure |
0.6-0.8MPa |
|
Weight |
400kg |
|
Size |
L4002*W2694*H2250(mm) |
Process
