Automatic Dry Fruit Jerky Filling Line with Sealing Capping and Labeling Machine
Automatic Dry Fruit Jerky Filling Line with Sealing Capping and Labeling Machine
Automatic Dry Fruit Jerky Filling Line with Sealing Capping and Labeling Machine

Automatic Dry Fruit Jerky Filling Line with Sealing Capping and Labeling Machine

Click to view shipping instructions

  • One Year Warranty

    One Year Warranty

  • User Manual

    User Manual

  • One-to-one Video Chat Support

    One-to-one Video Chat Support

  • Install & Debug Video

    Install & Debug Video

  • Custom Package Solution

    Custom Package Solution

Share:

Features & Benefits

Strong Container Compatibility: The whole production line is compatible with both round bottles and square bottles, featuring strong adaptability to meet diverse packaging container needs and enhance production flexibility.

Labor-Saving Bottle Conveying: Equipped with a special conveying line for bottle entry, realizing automatic bottle feeding and transportation, effectively reducing manual labor input and lowering labor costs.

Integrated Automatic Production: Supports automatic feeding and automatic weighing, enabling integrated and continuous completion of product filling, capping, sealing and other production procedures, greatly improving production efficiency and operation continuity.

High Precision & Fast Production Speed: Adopts microcomputer and photoelectric control technology, ensuring high filling weighing accuracy and fast production speed, stabilizing product quality and boosting production capacity.

Aluminum Foil Sealing & Fresh-Keeping: Configured with aluminum foil sealing device, which effectively guarantees product quality, locks freshness and greatly extends the shelf life of packaged products.

Stable & Smooth Operation: The automated integrated design ensures stable running of the whole line, with simple operation and convenient maintenance, suitable for long-term continuous production work.

Application

Suitable for automatic bottling, filling, capping and sealing of various granular products, covering a wide range of food and daily snack items.

Perfect for packaging dry fruit, beef jerky, nuts, beans, peanuts, candy, sunflower seeds, popcorn, almonds, vegetable salad, frozen food, jelly, biscuits, chocolate, pet food and other similar granular products.

Widely applied in food processing and packaging enterprises, meeting the needs of automated, efficient and stable granular product filling and packaging production.

Specitications

Model

LFGA-022

Filling Speed

10-20 Bottles/min

Bottle diameter

Φ30mm-Φ135mm(customizable)

Bottle height

40mm-200mm(customizable)

Control system

PLC

Total lines power

6.8KW

Power supply

220V,50Hz

Air consumption

0.6m³/min

Equipment material

304 stainless steel

Process

Bottle Unscrambler → Labeling Machine → Multi-head Weigher & Linear Filling Machine→Aluminum Foil Sealing Machine →Cap Elevator & Feeder →Automatic Servo Capping Machine→Finished Product Conveyor & Collection Table



  • Automatic Bottle Unscrambler (for sorting and feeding empty bottles into the conveyor)

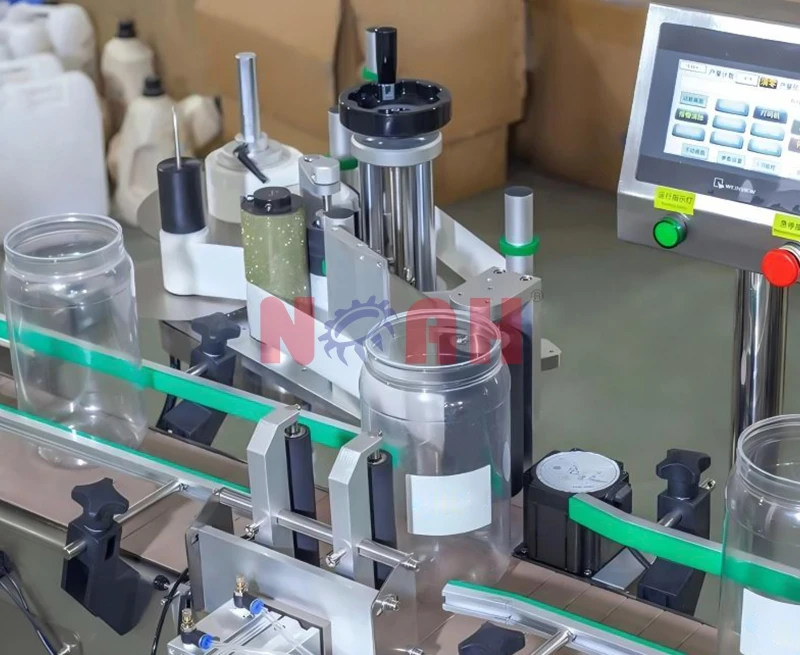

  • Automatic Labeling Machine (for applying labels to bottles before filling, or after capping depending on configuration)

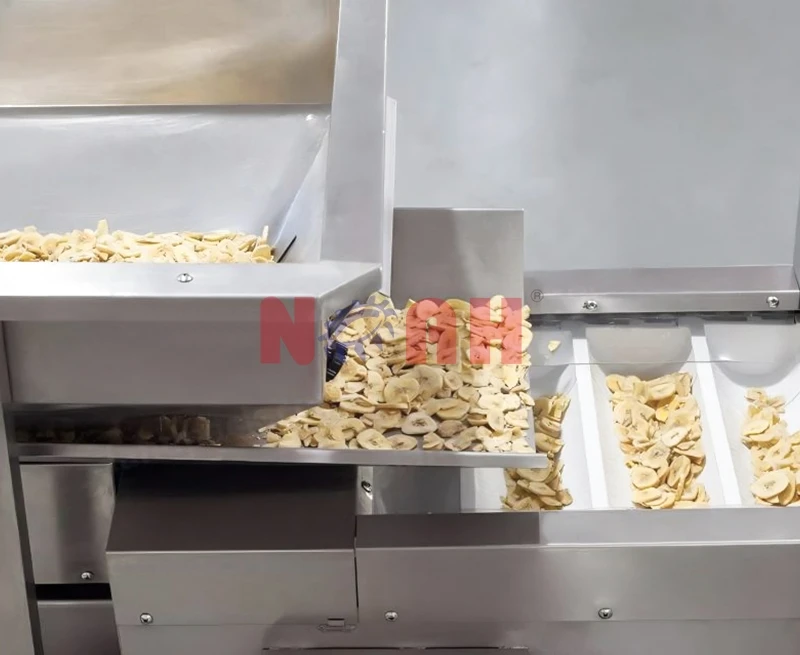

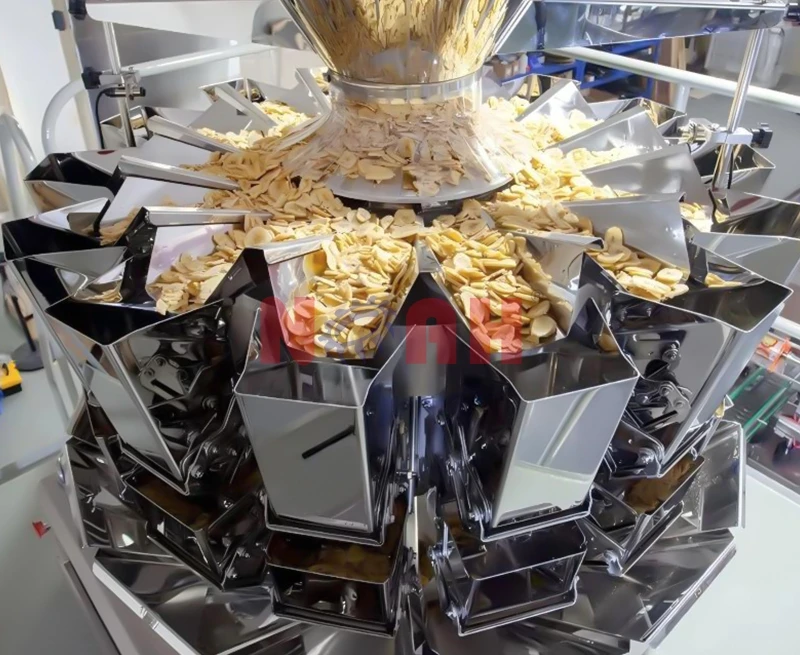

  • Multi-head Weigher & Linear Filling Machine (the elevated unit with 10+ weighing buckets, used for precise weighing and filling of granular products into bottles)
  • Automatic Aluminum Foil Sealing Machine (for heat-sealing aluminum foil on the bottle mouth to ensure freshness and tamper-proofing)
  • Cap Elevator & Feeder (the vertical unit that automatically sorts and feeds caps to the capping machine)

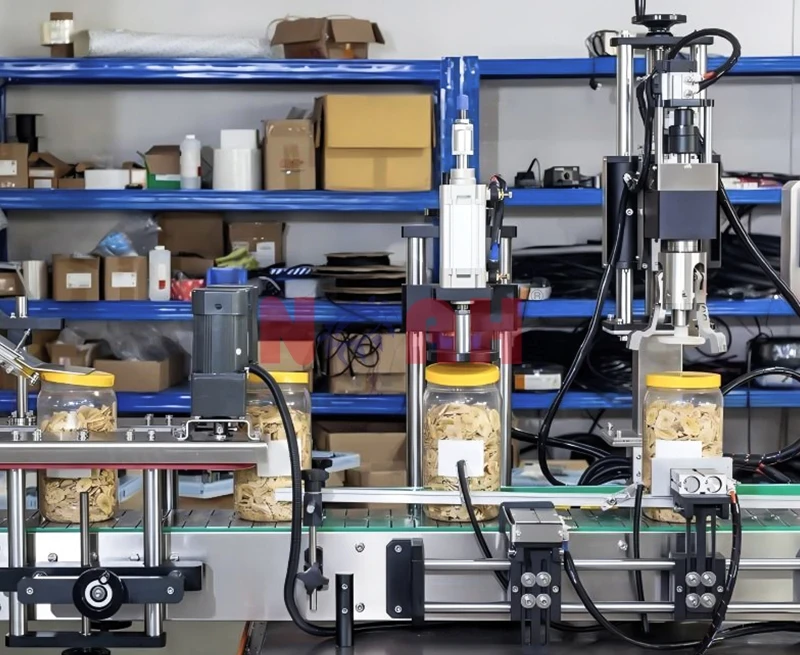

  • Automatic Servo Capping Machine (for screwing or pressing caps onto the bottles)
  • Finished Product Conveyor & Collection Table (for conveying the final packaged products to the output area)
