Features & Benefits

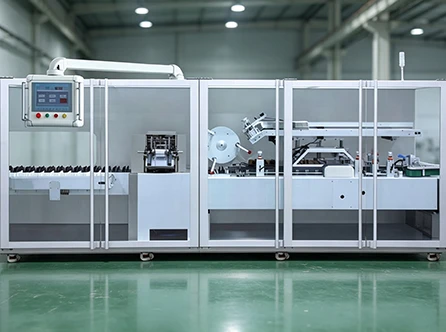

Upgraded high-speed automatic cartoning machine, with enhanced practicality, comprehensive functions and improved performance based on the original multi-functional model.
High-speed operation and high production efficiency, supporting simultaneous use of multiple machines for large-scale production.
Compact, lightweight and easy to operate, with additional automatic control functions to enhance automation.
Highly versatile: easy product change, short mold cycle, and simple assembly and debugging.
Equipped with an online interface, seamlessly connecting with blister machines for automated lines or usable as a standalone unit.
Fully automatic, completing all cartoning processes (leaflet folding, carton opening, sealing, etc.) automatically.
Flexible, suitable for both large-scale single-product and small-scale multi-variety production.
Precise and consistent cartoning/sealing for stable quality, compatible with specified packaging box requirements.
Application
Widely applied in pharmaceutical, food, cosmetics packaging and related industries.
Suitable for automatic cartoning and sealing of various products, core applicable categories: medicine bottles, medicine plates, Chinese medicine products, aluminum-plastic/plastic-plastic blister cards (e.g., pharmaceutical blister packs), cosmetics, playing cards, electronic components, daily necessities, small and long-sized regular objects, and certain food items.
Ideal for both large-scale production of a single product and small-scale production of different varieties, meeting diverse production needs.
Applicable for scenarios requiring high-speed, automated cartoning, can be used standalone or integrated with blister packaging machines into automated production lines, effectively improving enterprise automation level and production efficiency.
Specitications
| ITEM | ZH-220 | ZH-360 | ||||||
| Packing Speed | b/min | 50-220 | 50-360 | |||||
| Min.Size of Plate | mm | 50*30*10 | 160*100*35 | |||||
| Min.Bottle Size | mm | φ25*60 | φ90*40 | |||||
| Unfolded Specification Size | mm | Max.Size 250*190 | Max.Size 250*180 | |||||
| Main Motor Power | kw | 2.2 | 3.2 | |||||
| Total Power | kw | 5 | 5 | |||||
| Power Supply Wiring | - | 220V/380V50HZ | 220V/380V 50HZ | |||||
| Compressed Air Pressure | Pressure | mpa | 0.9 | 1.2 | ||||
| Consumption | NL/min | 40 | 120-160 | |||||
| Overall Size | mm | 4700*1510*1600 | 4500*1600*1700 | |||||
| Net Weight | kg | 3000 | 4000 | |||||
| Working Noise | db | <75 | <85 | |||||
