Features & Benefits
Dual-Technology Advantage: Combines the strengths of flat and roller blister packing technologies, integrating the advantages of both to enhance packaging performance, versatility and overall operational stability.

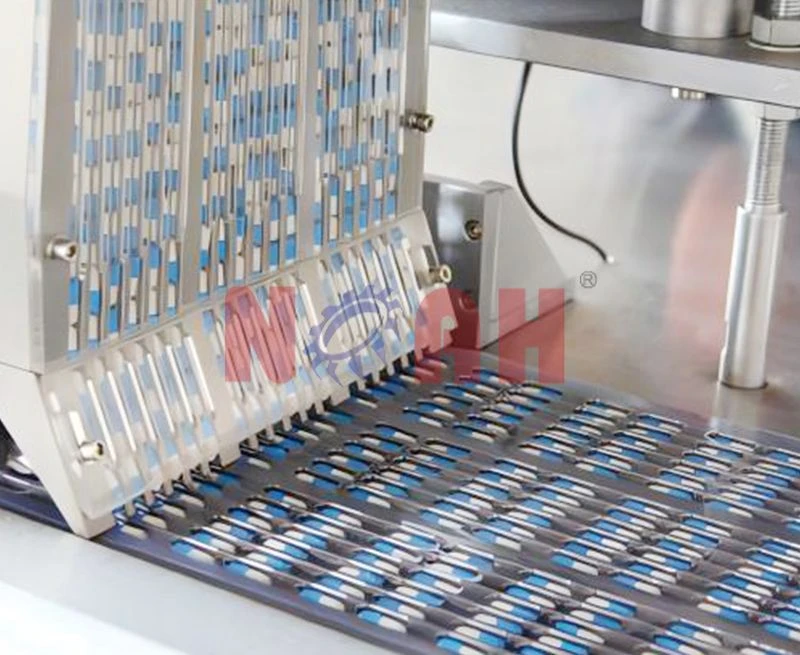

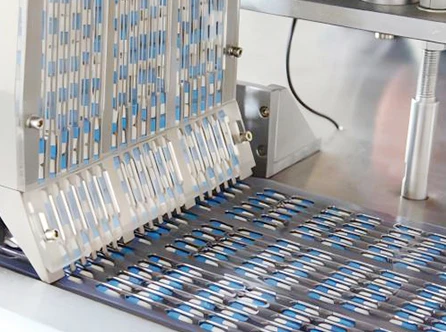

Specialized Feeding System: Equipped with a special tablet feeder (compatible with automatic capsule transfer machines), featuring high punching frequency, precise and stable operation, and reduced energy consumption, improving packaging accuracy and efficiency.
Easy & Quick Mold Replacement: Facilitates seamless and fast mold replacement, enabling smooth transitions between different product specifications and shapes, minimizing downtime and maximizing production efficiency.
Strong Shape Adaptability: Designed to accommodate various shaped drugs, plates, product sizes and configurations, providing great flexibility for packaging diverse products.
Application
Applicable Industries: Widely used in pharmaceuticals, food, medical devices, health products, electronic components and similar industries, suitable for high-efficiency blister packaging scenarios.

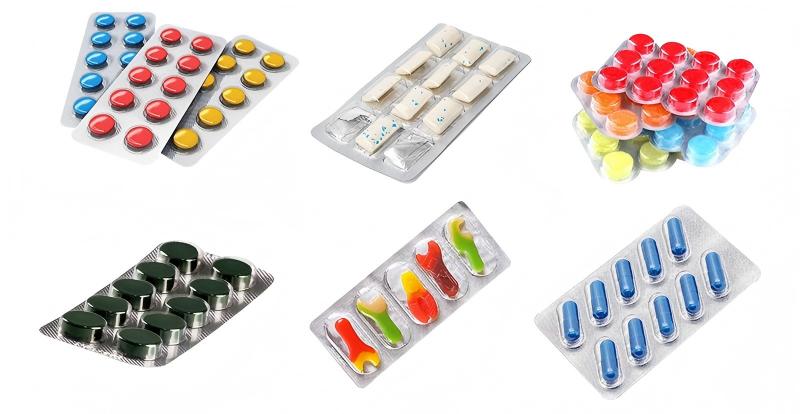

Applicable Products: Ideal for blister packaging of pharmaceuticals (tablets, capsules), food items, medical devices, health products, electronic components and other similar materials.
Applicable Packaging Materials: Suitable for blister type aluminum (PTP)/plastic (PVC) and aluminum (PTP)/tropical aluminum composite sealing, ensuring reliable and secure packaging.
Core Application Scenarios: Perfect for enterprises requiring high-productivity, versatile blister packaging; suitable for large-volume production with diverse product specifications and shapes, delivering efficient, consistent and cost-effective packaging solutions.
Specitications
|
ITEM |
DPH-360 |
|
|
Cutting speed (aluminum-plastic) |
40-180 times/min |
|
|
Production Capacity |
14400-43200 strips/h |
|
|
Range for feeding trips |
40-240 mm |
|
|
Max.Forming Area |
360×240mm |
|
|
Max.Forming Depth |
12mm |
|
|
Forming the Upper and Lower Heating Power |
4KW（×2） |
|
|
Heat Sealing Heating Power |
4KW |
|
|
Servo Motor Power |
（See the key components for details） |
|
|
Total Power |
Three phase five wire 380V 50HZ 25KW |
|
|
Gas Pump Volume Flow |
≥0.6m3/min |
|
|
Pack Material |
Medicinal Use PVC |
0.25×360mm |
|
Aluminium Foil PTP |
0.02×360mm |
|
|
Form Size of the Whole Machine(L×W×H) |
4500×1200×1800mm（Standard machine） |
|
|
Complete Machine Packaging Size(L×W×H) |
4900×1500×2100mm |
|
|
Net Weight |
3800Kg |
|
