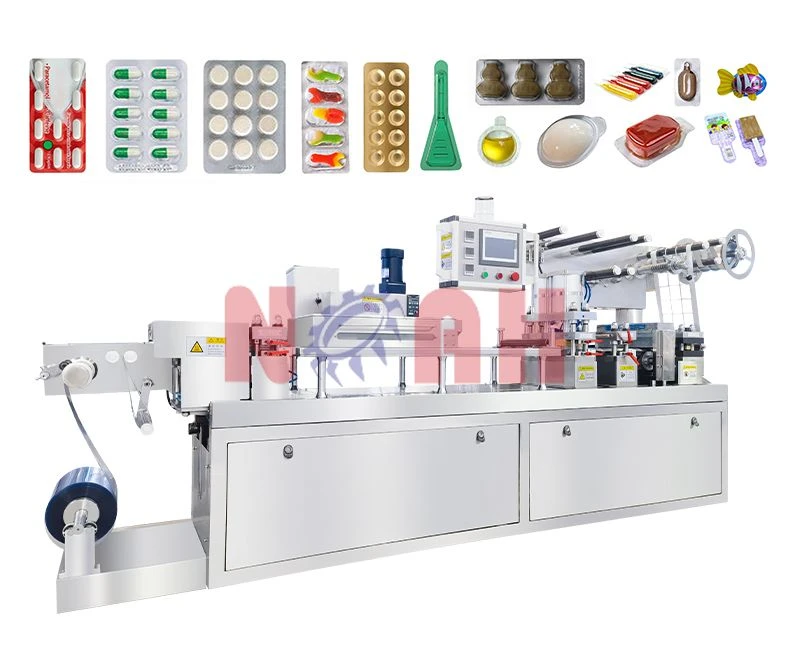

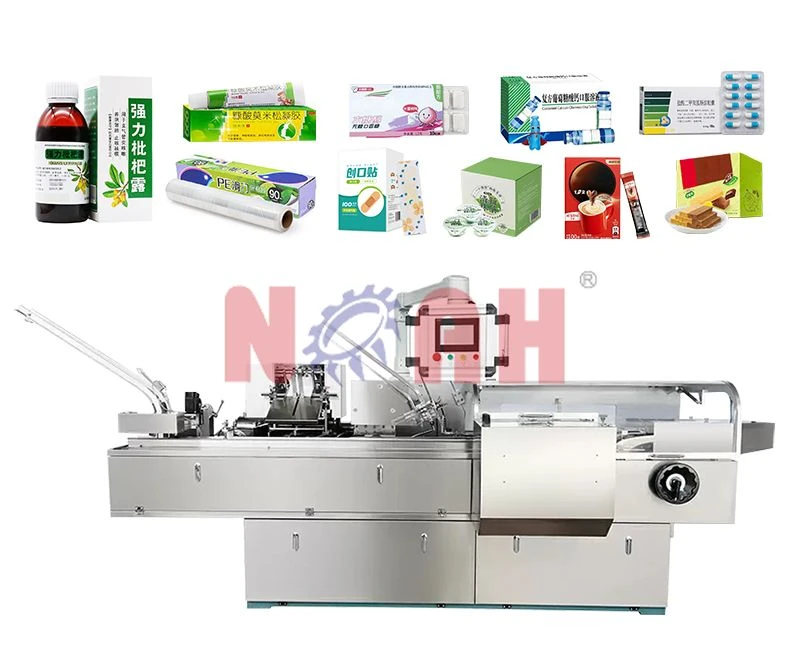

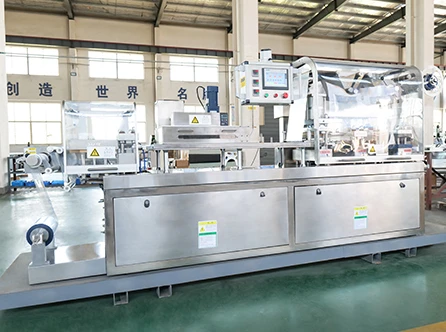

DPB+ZH Series Blister Packing Cartoning Machine Line
DPB+ZH Series Blister Packing Cartoning Machine Line
DPB+ZH Series Blister Packing Cartoning Machine Line
DPB+ZH Series Blister Packing Cartoning Machine Line
DPB+ZH Series Blister Packing Cartoning Machine Line
DPB+ZH Series Blister Packing Cartoning Machine Line
DPB+ZH Series Blister Packing Cartoning Machine Line

DPB+ZH Series Blister Packing Cartoning Machine Line

Click to view shipping instructions

  • One Year Warranty

    One Year Warranty

  • User Manual

    User Manual

  • One-to-one Video Chat Support

    One-to-one Video Chat Support

  • Install & Debug Video

    Install & Debug Video

  • Custom Package Solution

    Custom Package Solution

Share:
Buy It Now Chat On WhatsApp

Features & Benefits

Advanced precise machine integrating electricity, gas and light, with high performance and reliability.

PLC control + frequency conversion, with PLC processors, temperature modules and touch screen; easy to operate, precise control, seamless integration with other equipment.

High precision & stability: machine-tool track casting base, professional processing, good part exchangeability.

Adjustable configuration: forming/sealing/slitting parts freely adjustable on track, adapts to diverse needs, saves space.

Reliable sealing: multi-step cylinder + double-heat mechanism, ensuring consistent quality and product integrity.

Application

Widely applied in pharmacy, food, electronic, hardware and related industries.

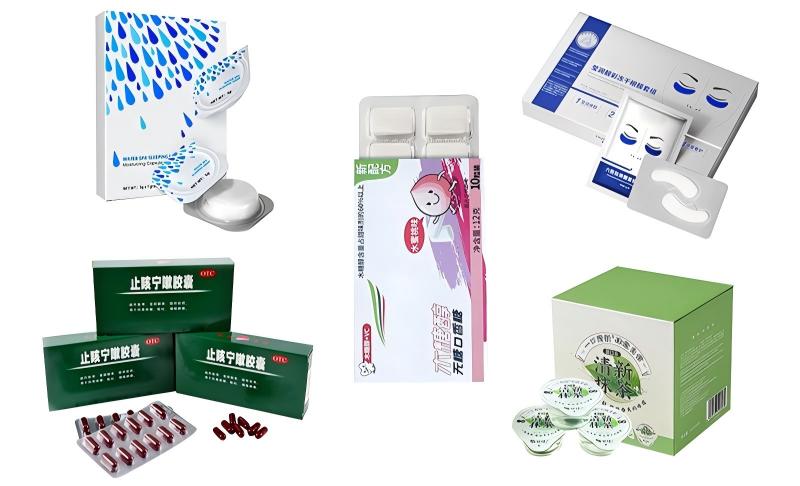

Suitable for automatic blister packing and cartoning of various products, including capsules, tablets, honey pills, milk tablets, candies, chocolates, injectors, syringes, pins, small components, aluminum-plastic blister cards, medicine bottles, cosmetics, poker and daily products.

Ideal for scenarios requiring ALU-ALU, ALU-plastic or paper-plastic combined sealing, and for products of different shapes and sizes.

Applicable for both standalone use and integration into production lines, meeting diverse packaging needs of enterprises in related industries.

Specifications

ITEM

DPB-260

Cutting Frequency

6-35 times/min (1) 20-60 times/min(II)

Production Capacity

8400 strip/h(1)12000 strip/h (II)

Max shaping areas and depth

240×160×26mm

Stroke

20-120mm (can be manutactured as user's requirements)

Standard Sheet

87x57mm(can be manutactured as user's requirements)

Air Pressure

0.4-0.6Mpa

Total power

380V/220V 50HZ 6KW

Main motor power

1.5kw

PVC hard pieces

0.15-0.5×250mm

PTPAluminum Foi

0.02-0.035×250mm

Dialy sis Paper

50-100g×250mm

Mould Cooling

tap water or back water

Overall Dimensions

2710×720×1600mm

Weight

1700kg



Model

ZH-120

Packing Speed

50-100 Rotation speed

50-120 b/min

Min.Size Of Plate

Max.Size 200×120×70mm

Min.Bottle Size

Min.Size 50×25×12mm

Unfolded Specification Size

Max.Size 260×180mm

Specification Size After Folding

Min.size 110×100mm

Main Motor Power

0.75/1.5KW

Total Power

1.5KW

Power Supply Wiring

220V/380V 50HZ

Compressed Air Pressure

Pressure

0.6MPa

Consumption

10NL/min

Overall Dimensions

3700×1350×1700mm

Weight

1200KG

Working Noise

<75dB

Options

Blister Packing Module Add-Ons



  • Aluminum-Aluminum (Alu-Alu) sealing system (for high-barrier pharmaceutical packaging)
  • Liquid/ampoule/oral liquid special feeding device (for non-solid product packaging)
  • Tear-off crimping device (for easy opening of blister packs)
  • PVC/PET waste recycling and collection system (reduces material waste)
  • High-precision mold temperature control unit (ensures consistent blister forming quality)
  • Automatic film alignment and correction system (prevents material deviation)
  • Extended product feeding hopper with level sensor (for continuous production)



Cartoning Module Add-Ons



  • Automatic leaflet folding and feeding device (for multi-page instruction manual insertion)
  • Hot melt glue sealing system (alternative to standard tuck-in closure)
  • Carton coding verification system (ensures readable and compliant batch numbers)
  • Automatic carton size adjustment kit (faster format changes without manual tooling)
  • Carton stacker and automatic discharge system (optimizes end-of-line handling)
  • Labeling machine integration interface (for automatic carton labeling)



Line Integration & Quality Control Add-Ons



  • Full-line online visual inspection system (detects missing products, incorrect blister formation, and carton defects)
  • Material shortage detection and automatic rejection device (prevents incomplete packaging)
  • Remote monitoring and data collection platform (for production line integration, OEE tracking, and GMP compliance)
  • Centralized lubrication system (reduces maintenance time and ensures consistent performance)
  • Line speed synchronization controller (optimizes coordination between blister and cartoning machines)
  • Multi-language HMI customization (supports global operation teams)
  • Noise reduction enclosure (improves workplace environment)
  • GMP-compliant cleanroom design package (for pharmaceutical applications requiring high cleanliness)
  • Energy-saving mode with auto-shutdown (reduces power consumption during idle periods)
  • Advanced safety interlock system (enhanced protection with dual-circuit emergency stops and safety light curtains)
