Features & Benefits

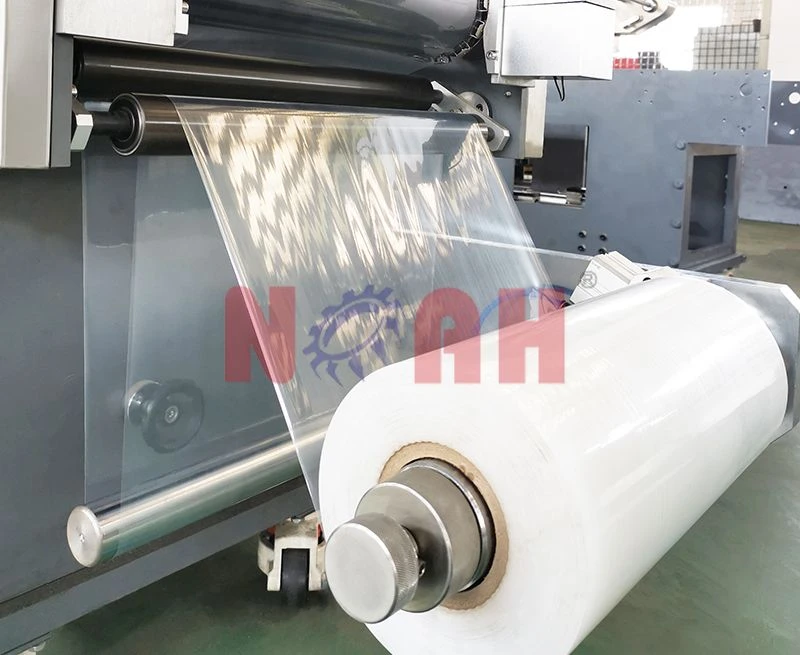

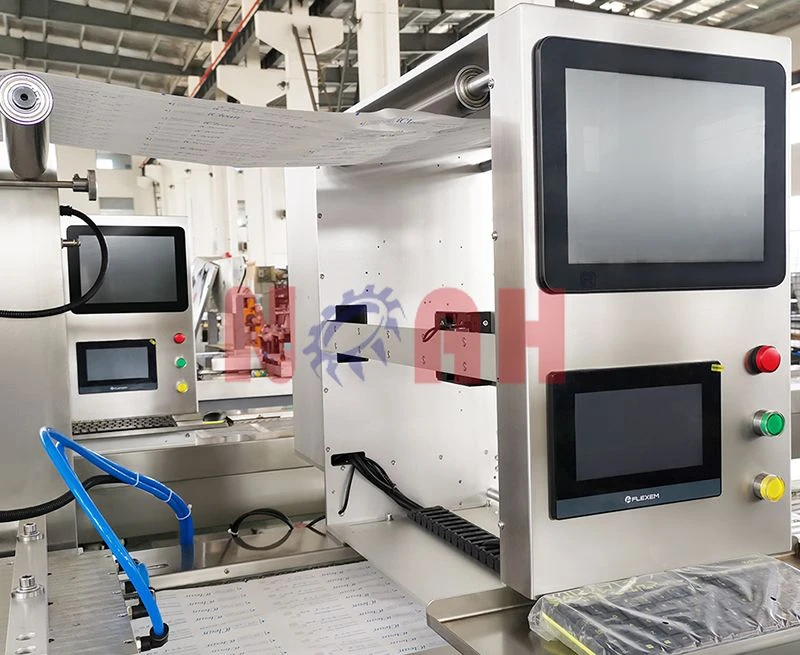

High automation with PLC programmable controller and touchscreen HMI; synchronously finishes full packaging processes (PE film heating, blister forming, product filling, sealing, batch number printing, vertical/cross cutting, product output) in one continuous operation, improving production efficiency and reducing manual intervention.
Adopts stepping/servo motor + chain traction device with adjustable stroke, enabling precise process control and consistent, accurate packaging results.

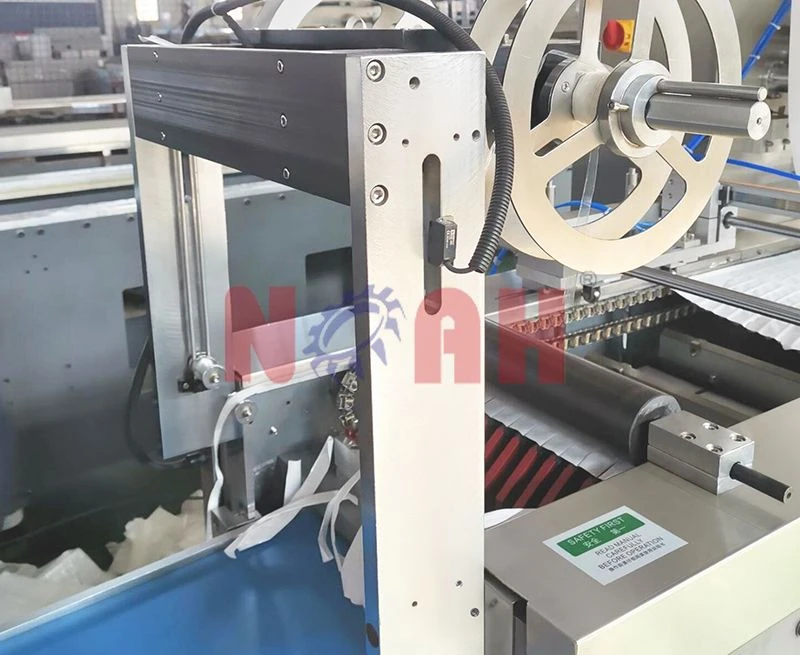

Equipped with photocell register (cursor) device, ensuring accurate positioning of packaging patterns and effectively improving overall packaging quality and appearance.
Flexible adjustable printing and slitting positions, meeting customized packaging requirements and guaranteeing precise placement of printed product information.

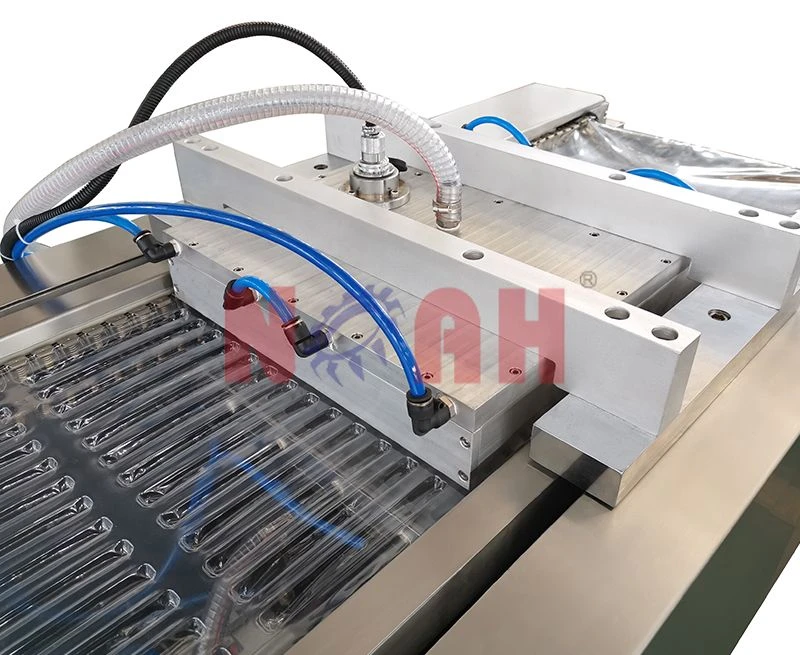

Male pin-based mold location system for convenient and quick mold replacement, saving time and effort in production line setup/changeover and adapting to various packaging formats.
Configured with servo motor system for stable and reliable operation; optional on-line printing system is available to extend the machine's functional applicability.
Specialized for soft/hard plastic blister packaging, well adapted to paper-PE blister packaging materials, meeting the diverse packaging process requirements of different industries.
Application
Widely applied in multiple industries including medical apparatus, Chinese & Western medicine, electronic components, chemical products, food, and sensitive anti-pollution materials packaging.

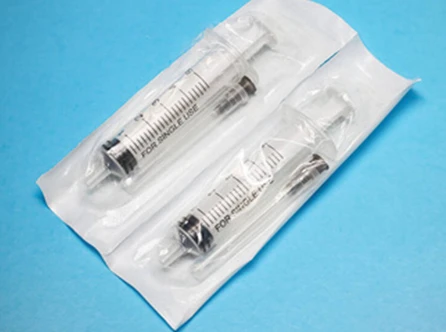

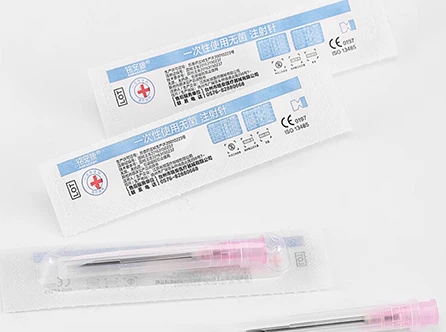

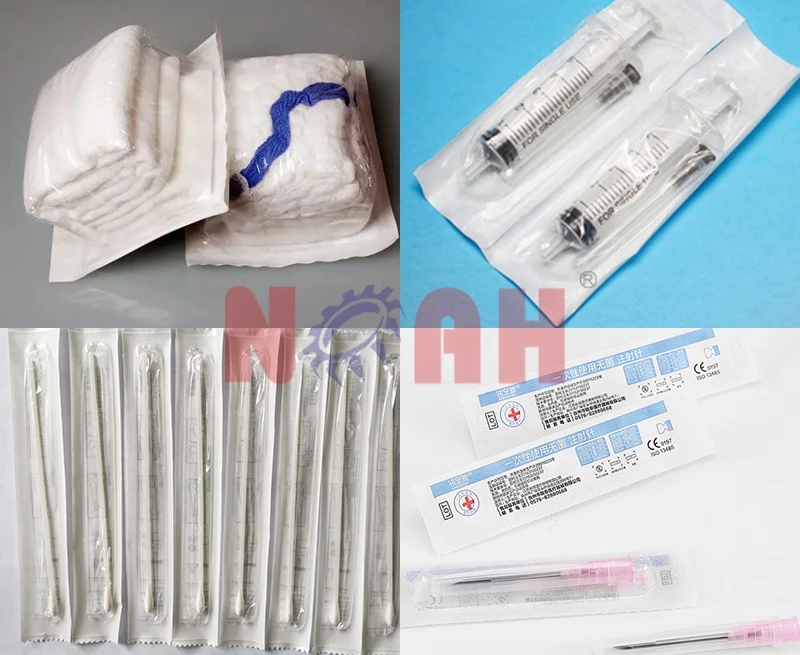

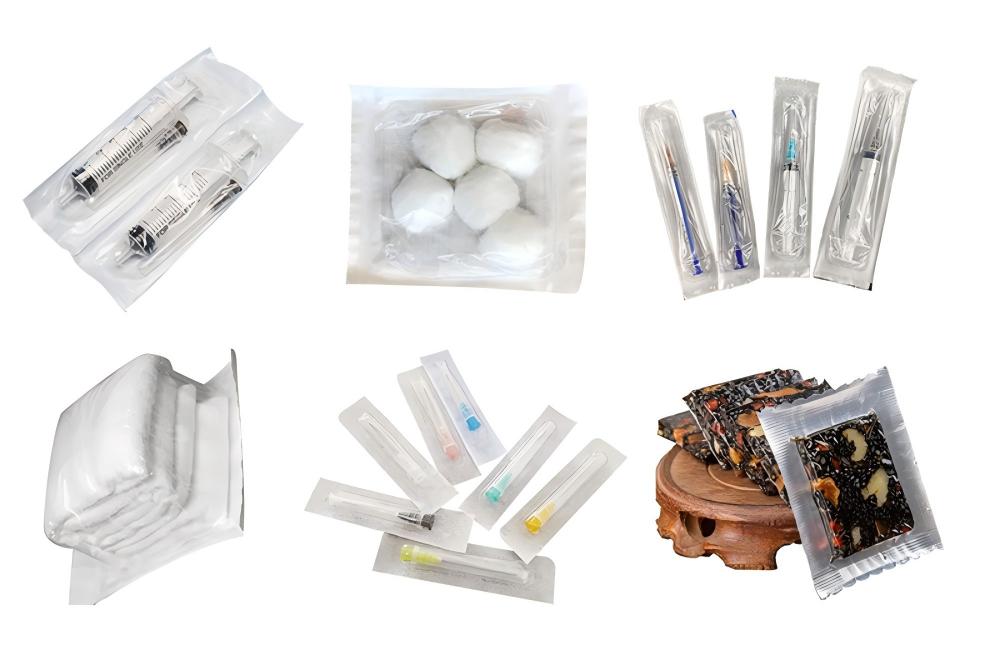

Especially suitable for paper-PE blister packaging of medical apparatus such as syringe needles, injectors, and pledgets.
An efficient and reliable packaging solution for manufacturers with diverse product types, capable of handling soft/hard plastic blister packaging needs of different products.
Specitications
|
Model |
DPB-420 |
|
Package Scope |
Suitablefor package of many sensitive anti-pollution materials and medical apparatus and instruments,Chinese and western medicine,electron,chemical product and foodstuff. |
|
Production Capacity(times/minute) |
(1)20 syrin |
|
Packing Frequency |
6-16 times /min |
|
Package Materials |
Paper-plastic,Aluminum-plastic,Plastic-plastic and other Compound Film suitableforheat sealing(or the hard plasticless than 0.2mm),width of upper film is 400mm and the lower is 420mm |
|
Maximum inner dimension(mm) |
375*154*50mm(L*W*D) |
|
Overall Size |
5000*980*1860mm (L*W*H) |
|
Total power |
10kw |
|
Net Weight |
1900kg |
Options
Videos

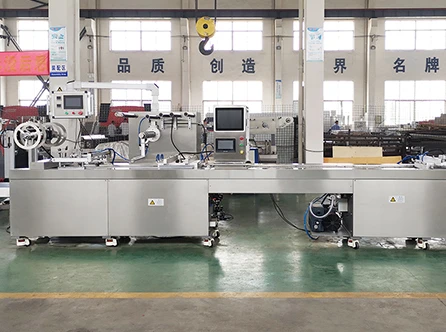

DPB-420 Flat-plate Soft Plastic Blister Packing Machine
