Features & Benefits

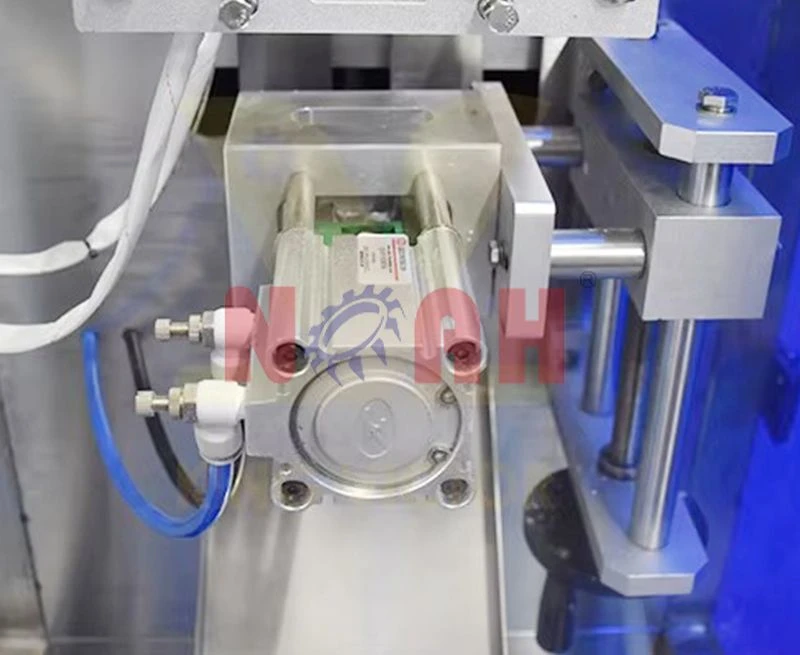

Full-Automatic Integrated Packaging: Automatically completes bag making, metering, filling, sealing, slitting, counting and batch number printing in one continuous process, realizing unmanned production and greatly improving packaging efficiency.

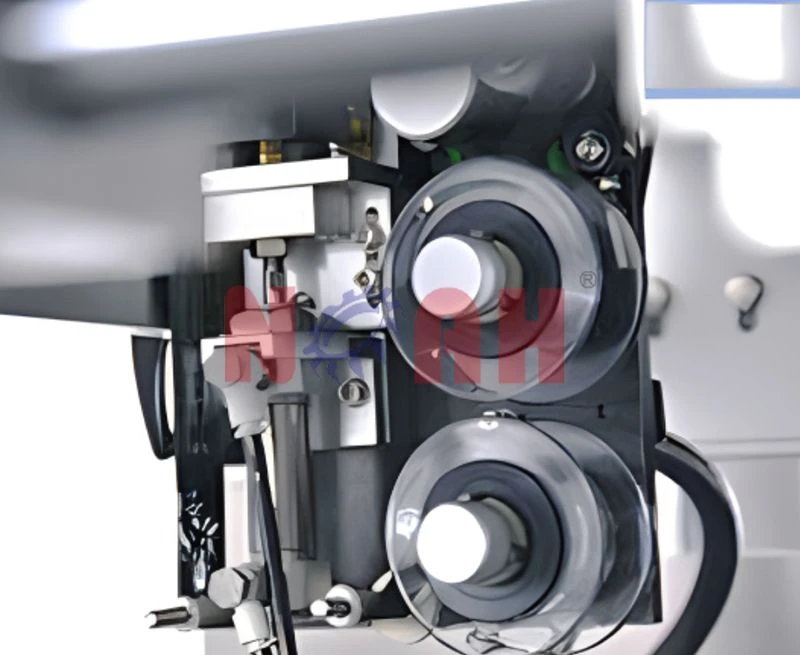

Intelligent Precision Control: Adopts advanced microcomputer controller with stepper motor drive, accurately controls bag length and trademark positioning; delivers stable performance, convenient parameter adjustment and ultra-small filling error via intelligent detection.

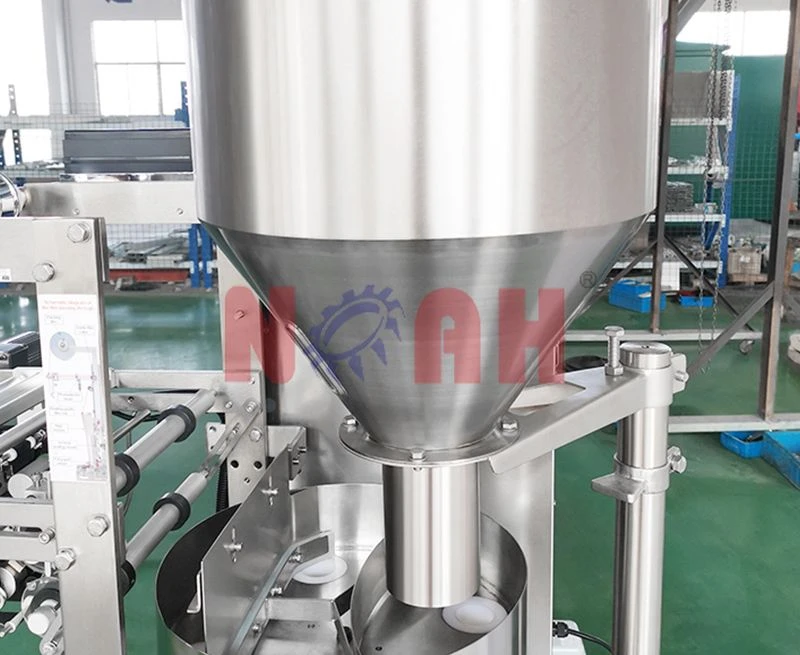

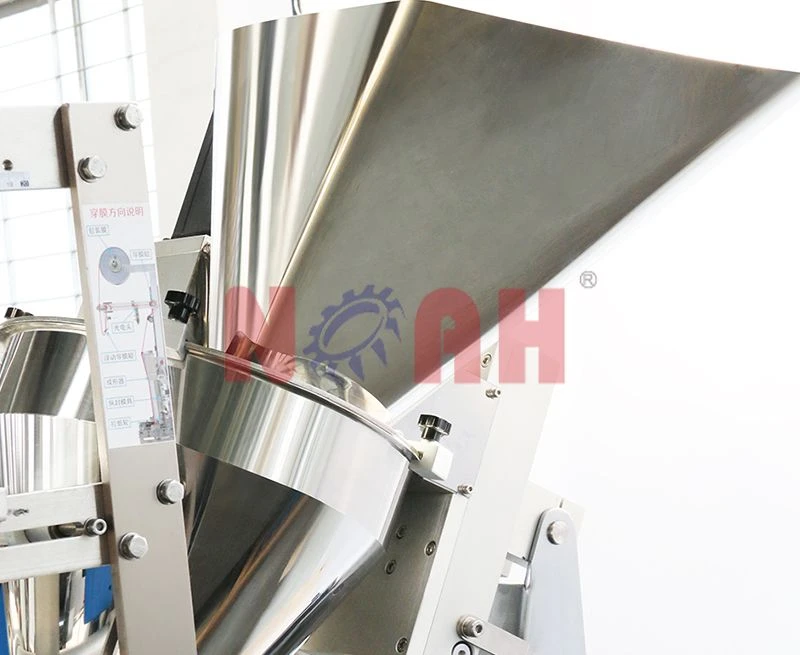

Wide Material Compatibility: Configurable with customized feeding mechanisms (screw, measuring cup, sauce feeder) for granules, powder, liquid, sauce and multi-material mixing, meeting diverse packaging needs.

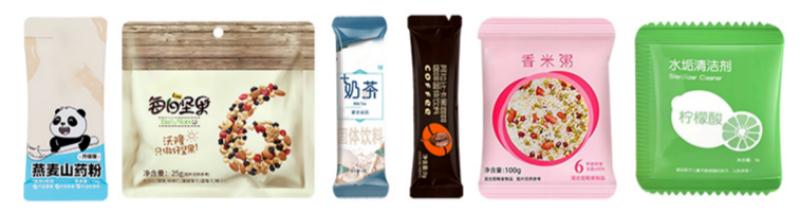

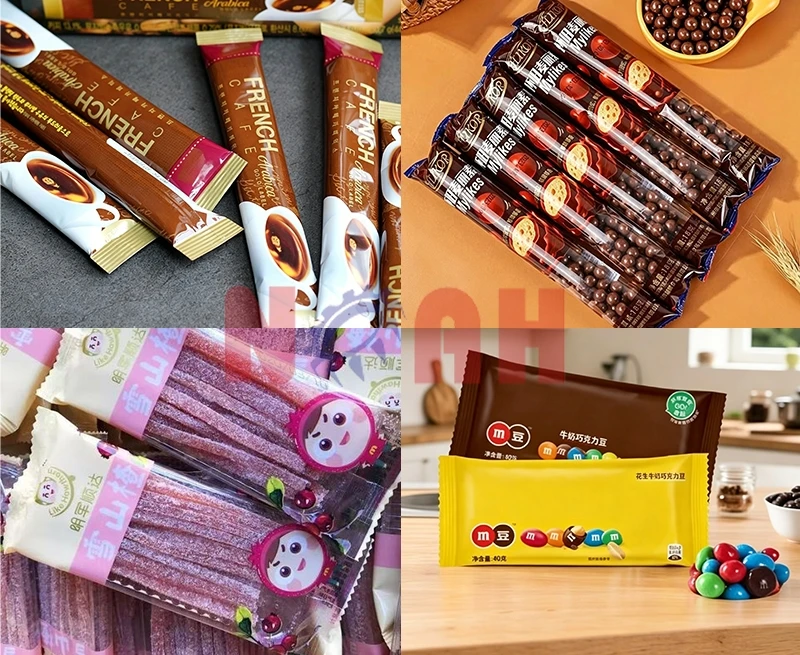

Flexible Bag Making Design: Supports back seal, three-side seal, four-side seal bag types; bag volume 5-300ml, film width 40-150mm, bag length 30-170mm, with customizable special specifications available.
Stable & Adjustable Output: Packaging speed ranges 30-60 bags/minute, adjustable based on material properties, balancing high efficiency and packaging accuracy for batch production.
Expandable Functionality: Supports additional accessories for date printing, vibration feeding and easy-tear notch, flexibly upgrading packaging functions to meet diversified process demands.
Application
Applicable Industries: Widely applied in food, chemical, pharmaceutical and other related industries, covering daily food, seasoning, chemical raw materials and pharmaceutical auxiliary packaging scenarios.

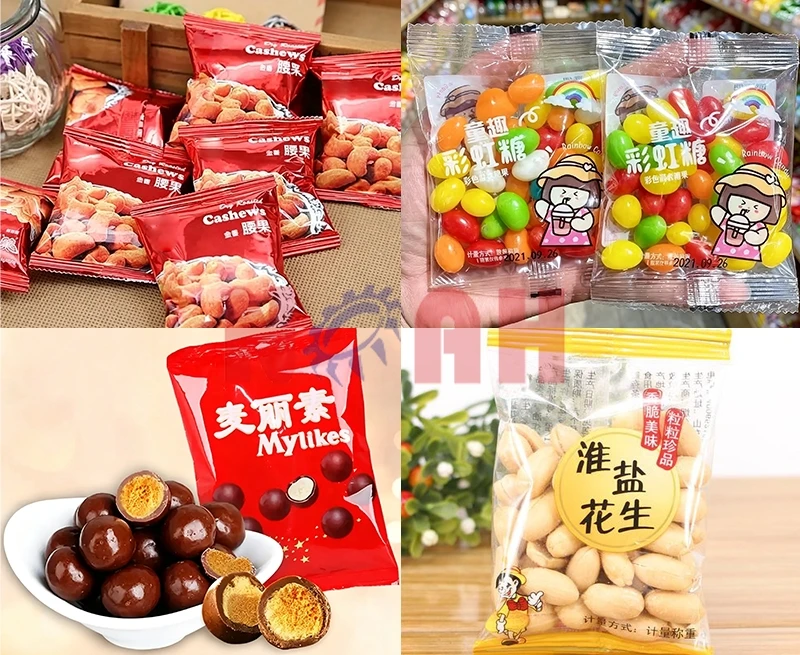

Applicable Materials: Perfect for granular materials (oatmeal, melon seeds, white sugar, etc.) and 120-400 mesh fine powder materials (seasoning powder, chemical powder, pharmaceutical powder, etc.).
Applicable Packaging Materials: Compatible with heat-sealable composite films (cellophane, polyester film, aluminum foil, high-pressure polyethylene coated film, etc.); requires photoelectric black mark (10mm*5mm) on film edge with clear color difference.
Required Operating Environment: Low-dust environment, operating temperature 5℃-40℃, relative humidity ≤60% (no condensation); suitable for heat-sealed filter cotton paper with outer diameter ≤450mm and skeleton inner diameter 75mm.
Specitications
|
Model: |
HDK（Rounded Cut） |
|
|
Measuring method: |
Screw/Measuring cup/Piston pump |
|
|
Bag making type: |
Back seal/Three side seal/Four side seal |
|
|
Bag making volume: |
5-300ml(Customizable） |
|
|
Bag size: |
Bag width |
40-150mm (Customizable) |
|
Bag length |
30-170mm (Customizable) |
|
|
Packaging speed: |
30-60 bags/minute (Depending on the nature of the material) |
|
|
Weight: |
320kg |
|
|
Overall Size: |
900×700×1800mm |
|
|
Input power: |
220V~50hz |
|
|
Total power: |
1.5kw |
|
Options
Videos
HDK Fully Automatic Vertical Packaging Machine
