Features & Benefits
Stable Bag Forming: Equipped with film deviation correction and roll film alignment devices to prevent film offset, ensuring stable and consistent three-side seal bag making.
Premium Sealing Quality: Servo motor film pulling provides stable tension control, realizing firm sealing (no leakage), neat bag shape and attractive finished products.
Multilingual Operation: User-friendly touch screen with default Chinese and English, supporting customizable language settings to fit global operation demands.
Intelligent Fault Protection: Built-in automatic film breakage recognition system with alarm and auto-stop function, effectively reducing material waste and equipment failure.
High Automation & Efficiency: Adopts well-known brand electrical components and advanced PLC control system, delivering high intelligence, fast operation speed and large output.
Application

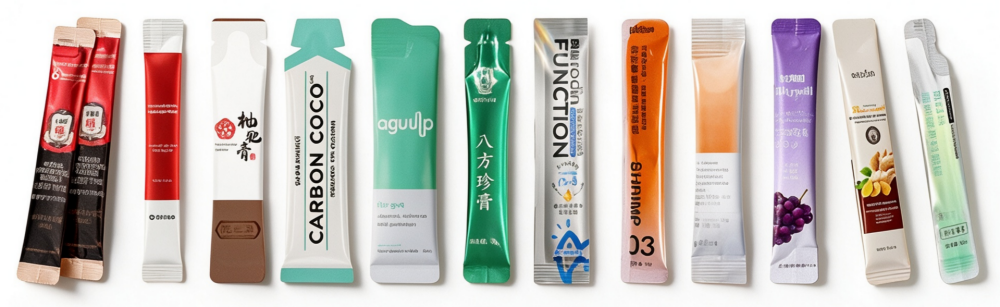

Applicable Materials: Suitable for automatic packaging of various liquid and paste products, including shampoo, mouthwash, sauce, honey, jelly, liquid medicine, gel, infant complementary food and other similar viscous materials.
Applicable Industries: Widely applied in food, daily chemical, pharmaceutical and baby food industries for high-efficiency three-side sealed strip bag packaging.
Specitications
|
Model |
HDCK-L3-2-4 |
HDCK-L3-3-10 |
HDCK-L3-4-16 |
|
Lanes |
2-4 Lanes |
3-10 Lanes |
4-16 Lanes |
|
Bag width |
17-75mm |
17-100mm |
17-110mm |
|
Film width |
Max:300mm |
Max:600mm |
Max:900mm |
|
Sealing Type |
3 side sealing |
||
|
Packing speed |
30-50Bags/Lane/Min |
||
|
Measuring |
1.Piston pump |
||
|
Cutting Type |
Straight cutting/Zig zag cutting/Round cutting/Die-cut |
||
|
Bag length |
50mm-180mm |
||
|
Power Supply |
50HZ/220V/3.5kw |
50HZ/220V/5.5kw |
50HZ/220V/7.5kw |
|
Dimension(mm) |
1800*1120*2500 |
1800*1430*2710 |
1810*1740*2850 |
|
Weight |
about 400kg |
about 600kg |
about 950kg |
