Features & Benefits
GMP Hygienic Design: Built with full food-grade 304 stainless steel, complying with GMP standards to ensure safe and hygienic production.
Stable Bag Forming: Equipped with film deviation correction and roll film alignment devices to avoid film offset, achieving stable and consistent bag making.
Excellent Sealing Performance: Servo motor film pulling ensures stable tension, delivering tight sealing, no leakage and aesthetic strip bags.
Multilingual Touch Control: Intuitive touch screen with default Chinese and English languages, supporting customized language settings.
Intelligent Safety Protection: Automatic film breakage detection with alarm and auto-stop function, reducing material waste and machine failure rate.
Stable & Efficient Control: Adopts famous-brand electric parts and PLC control system, featuring high automation, fast running speed and high output.
Application

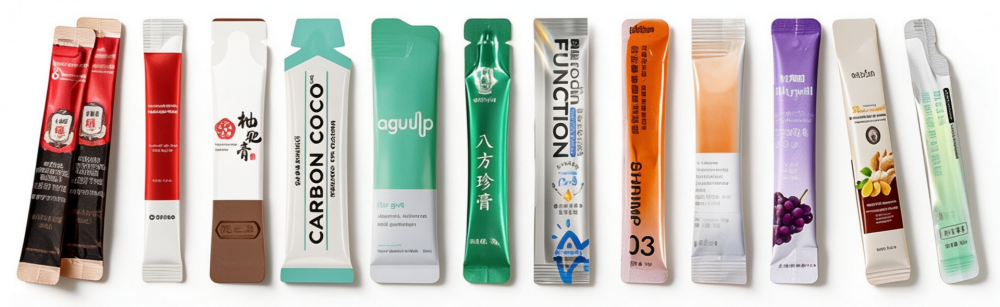

Applicable Materials: Suitable for automatic packaging of various liquid and paste products, including shampoo, mouthwash, sauce, honey, jelly, liquid medicine, gel, infant complementary food and other similar viscous materials.
Applicable Industries: Widely used in food, daily chemical, pharmaceutical and baby food industries for high-speed multi-lane strip bag packaging.
Specitications
|
Model |
HDCK-L-2-4 |
HDCK-L-3-10 |
HDCK-L-4-16 |
|
Lanes |
2-4 Lanes |
3-10 Lanes |
4-16 Lanes |
|
Bag width |
17-70mm |
17-95mm |
17-105mm |
|
Film width |
Max:300mm |
Max:600mm |
Max:900mm |
|
Sealing Type |
Back seal |
||
|
Packing speed |
25-40Bags/Lane/Min |
||
|
Measuring |
1.Piston pump 2.Peristaltic pump 3.Ceramic pump 4.Rotary pump |
||
|
Cutting Type |
Straight cutting/Zig zag cutting/Round cutting/Die-cut |
||
|
Bag length |
50mm-180mm |
||
|
Power Supply |
50HZ/220V/3.5kw |
50HZ/220V/5.5kw |
50HZ/220V/7.5kw |
|
Dimension(mm) |
1800*1120*2500 |
1800*1430*2710 |
1810*1740*2850 |
|
Weight |
about 400kg |
about 600kg |
about 950kg |
