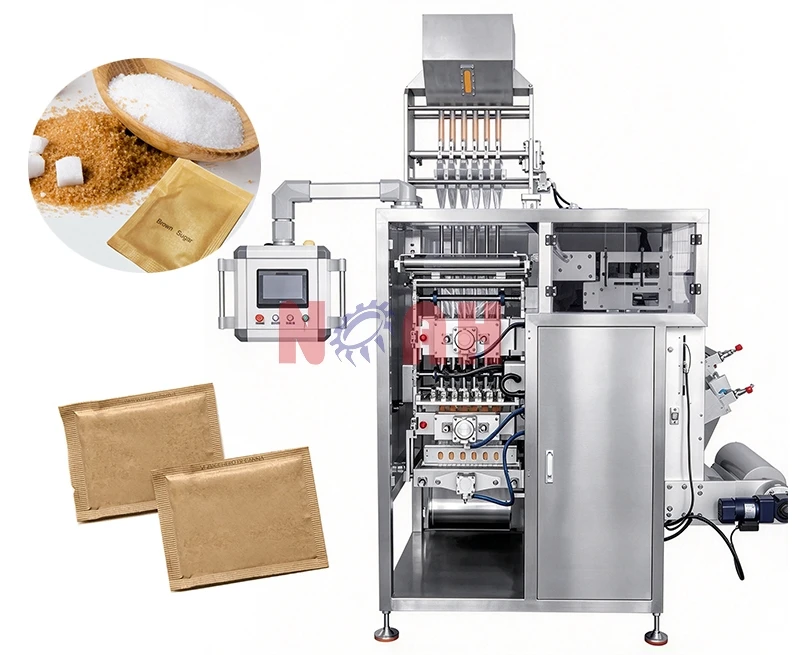

HDCK-G4 Multi-lane Four-side Seal Granule Packaging Machine

Whole machine made of food-grade 304 stainless steel, fully compliant with GMP production standards; detachable filling unit for easy cleaning and sanitization.

Equipped with film offset correction, photoelectric tracking and cursor compensation system to stabilize film transportation and guarantee precise printing registration.

Servo motor film pulling ensures consistent sealing pressure, reliable seals and neat, aesthetic finished sachets.

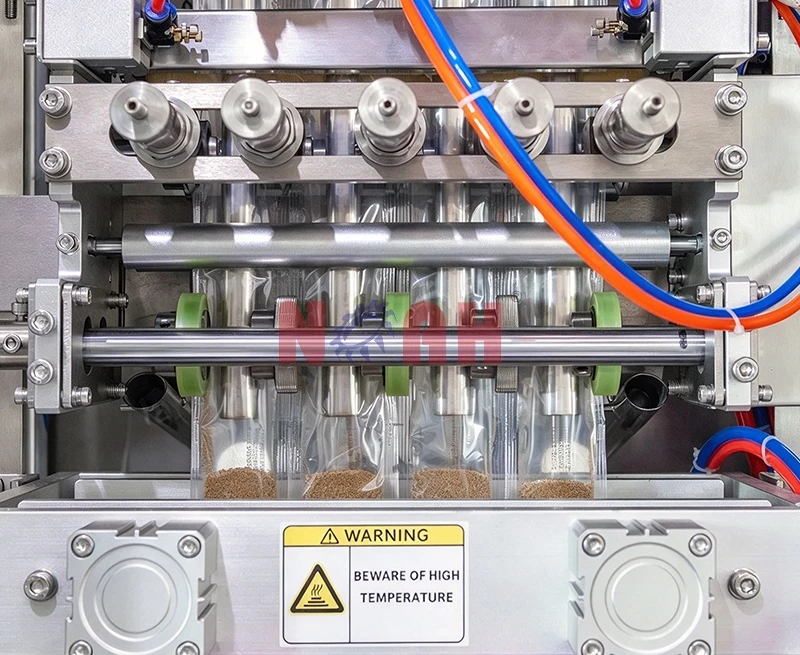

High-precision full-rolling heat sealing rollers for four-side seal, multi-lane sachet forming; smooth bag shape, high speed and efficiency.

Sealing temperature automatically controlled with ±1℃ precision, compatible with complex films such as BOPP/PE, Aluminium/PE, Paper/PE, Polyester/Aluminium/PE, Nylon/CPP, etc..

Stepless pouch length adjustment without mould replacement.

Dedicated vibrating-type or push-pull volumetric measuring mechanism for different granular materials; each lane dosage can be calibrated independently and accurately.

PLC control system with touchscreen HMI; Chinese & English by default, multi-language customizable.
Automatic film breakage recognition triggers alarm and auto-stop, fitted with roll film alignment and docking device.

Five-axis servo step drive and independent servo-controlled horizontal sealing; stable, simple and reliable structure.

Fully automatic one-cycle workflow: metering, filling, bag forming, vertical sealing, horizontal sealing, batch coding, counting and finished pouch discharging; storage bin with continuous automatic vacuum feeding.

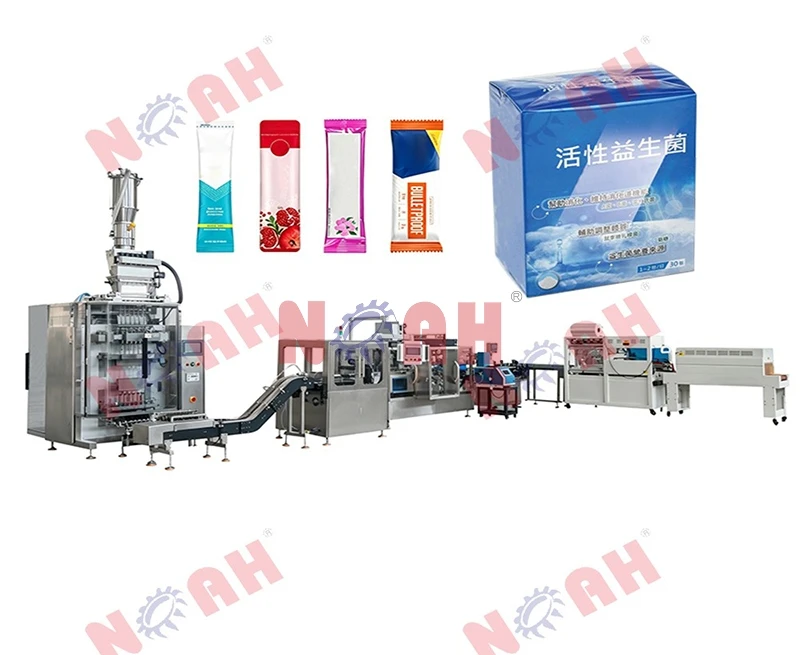

Supports 1 to 16 lanes adjustable according to pouch width; can be integrated with supplementary feeding line and automatic cartoning equipment to form a complete production line.
