Features & Benefits
GMP Hygienic Design: Constructed entirely of food-grade 304 stainless steel, fully compliant with GMP standards to ensure hygienic and safe production.
Stable Bag Forming: Equipped with film deviation correction and roll film alignment devices to eliminate film offset, ensuring consistent and stable bag making.
Premium Sealing Quality: Servo motor film pulling system provides stable tension control, delivering firm sealing and neat, aesthetic strip bags.
Multilingual Operation: User-friendly touch screen supports Chinese and English by default, with customizable language options for global market demands.
Intelligent Fault Protection: Built-in automatic film break detection system triggers alarm and automatic shutdown, effectively reducing material waste and equipment failure risks.
High Efficiency & Reliability: Adopts well-known brand electrical components and advanced PLC control system, realizing high intelligence, fast operation speed and high production efficiency.
Application

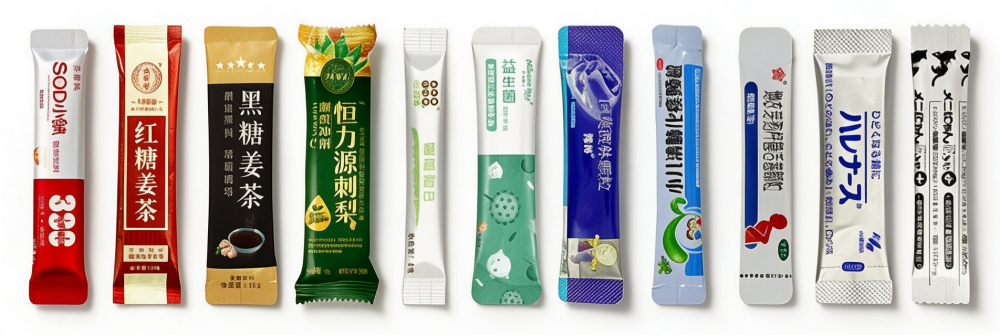

Applicable Materials: Suitable for automatic packaging of various granular products, including sugar, salt, seasonings, coffee granules, desiccants and other similar granular materials.
Applicable Industries: Widely applied in food, seasoning, daily chemical and packaging industries for high-efficiency strip bag packaging.
Specitications
|
Model |
HDCK-G-2-4 |
HDCK-G-3-10 |
HDCK-G-4-16 |
|
Lanes |
2-4 Lanes |
3-10 Lanes |
4-16 Lanes |
|
Bag width |
17-70mm |
17-95mm |
17-105mm |
|
Film width |
Max:300mm |
Max:600mm |
Max:900mm |
|
Sealing Type |
Back seal |
||
|
Packing speed |
30-50Bags/Lane/Min |
||
|
Measuring |
1.Volumetric cup 2.igher |
||
|
Cutting Type |
Straight cutting/Zig zag cutting/Round cutting/Die-cut |
||
|
Bag length |
50mm-180mm |
||
|
Power Supply |
50HZ/220V/3.5kw |
50HZ/220V/5.5kw |
50HZ/220V/7.5kw |
|
Dimension(mm) |
1800*1120*3000 |
1800*1430*3020 |
1810*1740*3100 |
|
Weight |
about 400kg |
about 600kg |
about 950kg |
Options
