Features & Benefits
User-Friendly Operation: Intuitive touch screen interface, minimal training required, easy to master.
Flexible Speed Adjustment: Frequency control system enables flexible speed regulation to match production demands.
Automatic Error Detection: Built-in sensors detect pouch errors in real time, avoiding material waste and reducing defects.
Precise Temperature Control: PLC-controlled touch screen for accurate temperature adjustment, ensuring stable sealing quality.
Safe & Stable Operation: Equipped with parking brake function for operational safety and accident prevention.
Efficient Material Utilization: Perfect sealing and printing design reduce material waste, saving production costs.

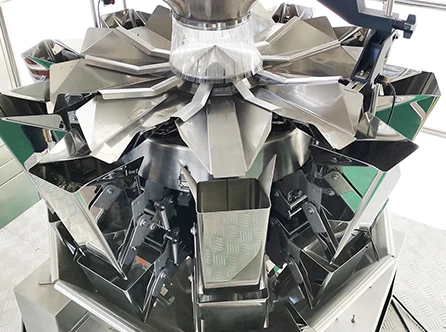

Customizable Measuring Options: Optional measuring machine configuration to meet diverse filling needs.
Low Maintenance & Eco-Friendly: Imported plastic bearings, maintenance-free, no oil leakage, environment-friendly.
Hygienic Compliance: Hygienic materials, meeting food industry standards for safe packaging.
Versatile Packaging Compatibility: Suitable for multi-layer compound film, PE, PP, paper preformed bags.
Precise & Reliable Performance: Advanced PLC and electric control system ensure high-precision packaging.
Application
Versatile and widely used in food, grain, pet care, daily necessities and other related industries, adapting to diverse production needs.
Ideal for packaging various granular products, including grains, nuts, seeds, coffee beans, tea leaves, snacks, pet food and other similar granular items.
Compatible with multi-layer compound film, monolayer PE, PP film, paper preformed bags and other common packaging materials.
Specitications
|
Model |
GLG200 |
GLG300 |
|
Working Position |
Six-working position |
|
|
Pouch Material |
Laminated film, PE, PP etc. |
|
|

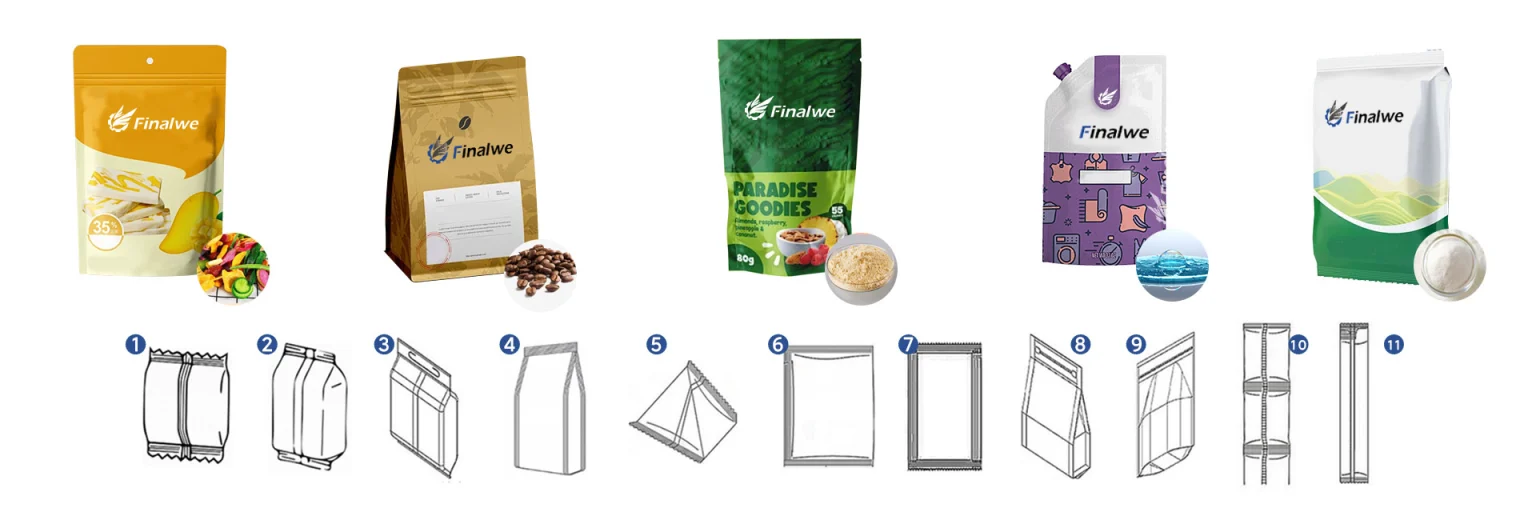

Pouch Pattern |
Stand-up pouches, Handbags, Zipper bags, Rounded edges sealed bags, 3-side seal bags, Paper bags |
|
|
Pouch Size |
W:100-210mm L:100-350mn |
W: 200-300mm L:200-450mm |
|
Filling Range |
5-1500g |
100-2000g |
|
Weight |
1000kg |
1000kg |
|
Packing Speed |
≤40 Bags/min Speed depends on the product status and filling weight |
|
|
Total Power |
3.0kw |
3.2kw |
|
Overall Size |
L:1650×W:1380×H:1500mm |
L:2200×W:1850×H:1500mm |
|
Compressed Air |
0.4 m³/min Compress air is supplied by user |
|
