Features & Benefits
High Efficiency & Stable Output: 15-70 bags/min production rate; available in single/double head configurations (double head for higher capacity, single head for small-batch production), boosting packaging efficiency and cutting labor costs.

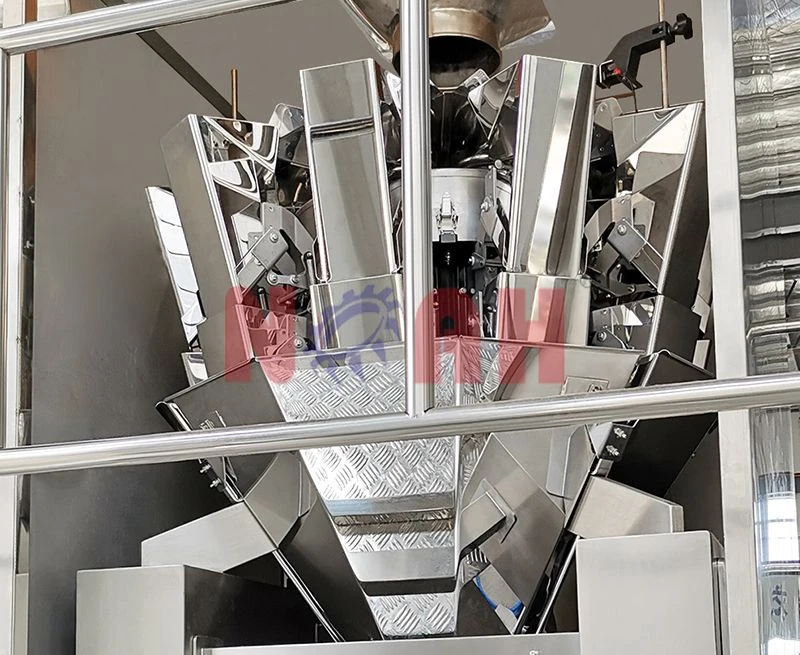

Precision Weighing & Filling: Equipped with accurate weighing system, ensuring consistent filling volume (50-1500ml), reducing material waste and improving packaging qualification rate.
Flexible Bag Compatibility: Supports customizable bag sizes (length 60-350mm, width 60-250mm), adaptable to diverse bag specifications for different products.
Intelligent & User-Friendly: PLC control with touch screen HMI, easy parameter adjustment, fault self-diagnosis & alarm function; simple operation and low maintenance difficulty.
Hygienic & Durable Build: Food-grade stainless steel construction, corrosion-resistant, easy to clean; sturdy structure for long service life and low noise operation.
Versatile & Customizable: Compatible with granular, powder, flaky materials; supports date inkjet printing, optional nitrogen flush & other functions to meet special packaging needs.
Reliable Sealing Performance: PID temperature control system, ensuring firm, airtight sealing for various packaging films, avoiding leakage and deterioration.
Application
Applicable Industries: Widely used in food, grain, condiment, chemical, fertilizer, pharmaceutical, daily chemical and other manufacturing industries.
Applicable Materials: Perfect for granular, powder, flaky and small particle products, such as sugar, salt, rice, sesame, monosodium glutamate, nuts, snacks, charcoal powder, activated carbon, grain, fertilizer and more.
Applicable Scenarios: Suitable for automatic bag forming, filling, sealing, cutting and printing of pre-made & in-line made pouches; ideal for small, medium and large-scale batch packaging production.
Specitications
|
Model |
DXD-420 |
DXD-520 |
|
Packing speed |
15-70bags/min |
15-70bags/min |
|
Bag-making size |
(L)60-300mm (W)60-200mm |
(L)80-350mm (W)100-250mm |
|
Filling range |
150-2000ml |
150-2000ml |
|
Film width |
420mm |
520mm |
|
Packing materials |
OPP/CPP PET/PE, compound material, etc |
OPP/CPP PET/PE, compound material, etc |
|
Film thickness |
0.04-0.08mm |
0.04-0.08mm |
|
Air consumption |
0.36m3/min 0.6MPa |
0.36m3/min 0.6MPa |
|
Power supply |
AC220V 50/60Hz 3.5kw |
AC220V 50/60Hz 3.5kw |
|
Overall Size |
(L)1750×(W)1050×(H)1700mm |
(L)1750×(W)1050×(H)1700mm |
|
Machine weight |
1000kg |
1000kg |
Options
Videos
DXD-520 Automatic Giving Bag Packing Machine Unleashes Efficiency
