Features & Benefits
High-Precision Weighing & Feeding: Adopts horizontal auger feeding + independent suspension sensor weighing design, overcoming the low precision defect of vertical auger; dual spiral feeding with adjustable speed (frequency converter control), ensuring weighing accuracy and feeding efficiency.
Intelligent & User-Friendly Operation: Equipped with Chinese-English switchable touch screen control, simple to operate; can store up to 5 product formulas, convenient for parameter switching when changing products.
Energy-Saving & Stable Performance: Main machine adopts converter technology; infrared sensing + servo discharging, realizing precise discharge and electricity saving; stable signaling and reliable operation.
Hygienic & Easy to Clean: All parts in contact with materials are made of food-grade SUS304 stainless steel; detachable structure design for easy cleaning during shift change or product replacement, meeting food hygiene standards.

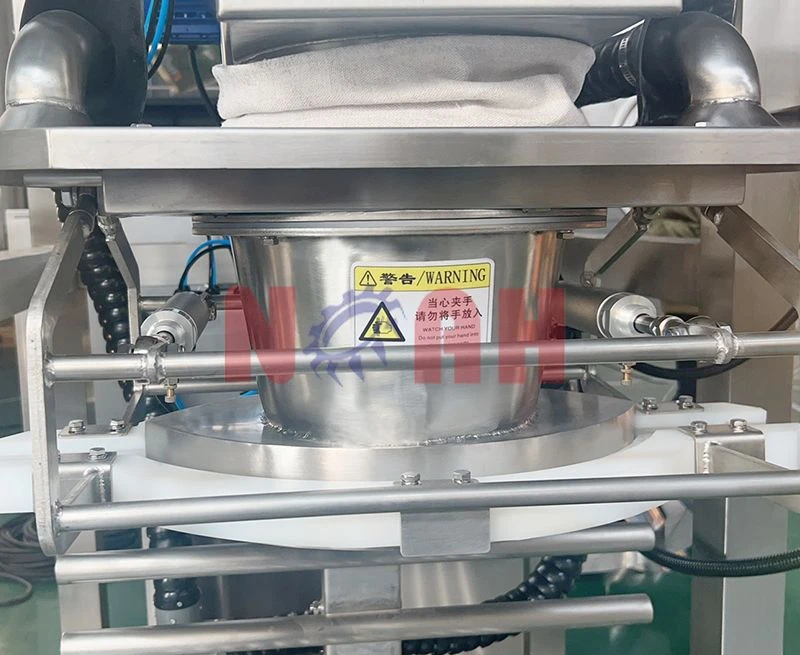

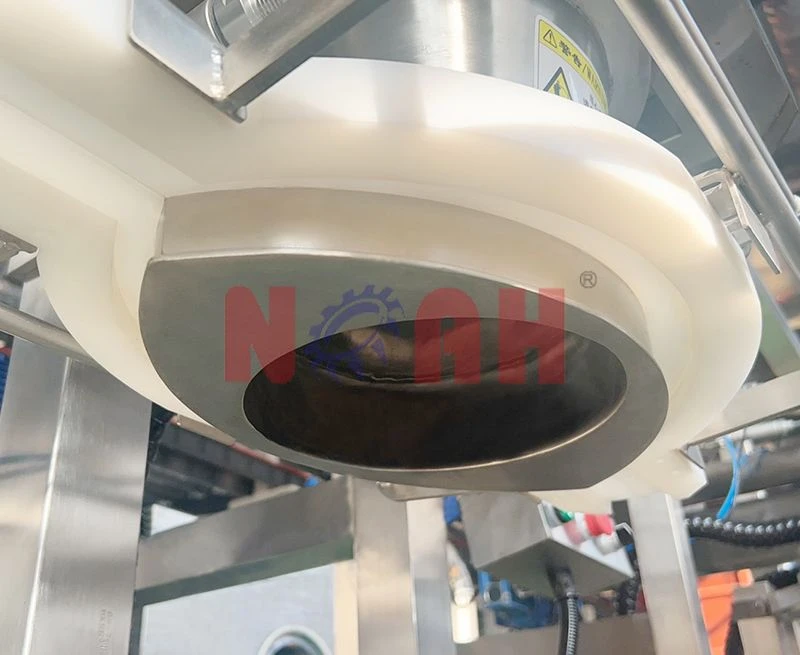

Convenient & Efficient Workflow: Equipped with clamp bag device (silicone material for tight, stable sealing); one-person operable whole process, reducing labor demand (only 1-2 employees needed for normal production).
Durable & Low Maintenance: Screw drive adopts bearing-free design (food-grade servo packing), lifelong maintenance-free, avoiding bearing oil leakage and dust damage, ensuring long service life and stability.
Comprehensive Safety & Detection: Equipped with ultra-tolerance alarm, motor overload alarm and protection functions; built-in counting function for clear production volume statistics.
Flexible & Customizable: Standard dust suction interface, seamlessly connectable with central dust collector, suitable for clean workshops; optional explosion-proof type (customizable according to workshop needs) and sewing device.
Application
Applicable Industries: Widely used in food, chemical, pharmaceutical and other industries, especially suitable for scenarios requiring high-precision powder packaging.
Applicable Materials: Perfect for high-precision quantitative filling of powder products with strict accuracy requirements, such as chemical powders, pharmaceutical raw materials, food additives and other similar powder materials; suitable for 5-25kg packaging weight.
Applicable Scenarios: Ideal for semi-automatic quantitative packaging of powders; suitable for clean workshops and common production workshops, compatible with customized bag sizes (to be determined);
Specitications
|
Model |
DC-3 |
|
|
Feeding Method |
- |
Transverse Double Helix |
|
Measuring Range |
kg/bag |
5—25 |
|
Measuring Accuracy |
% |
≤±0.2-1 |
|
Packaging Speed |
bag/min |
2-6 |
|
Power Supply |
- |
AC380V |
|
Power |
kw |
3.5 |
|
Air Consumption |
m³/h |
0.3 |
|
Silo Capacity |
L |
200 |
|
Material Contact |
- |
SUS304 |
|
Bag Size Range (W) |
mm |
520-700 |
|
Overall Size |
mm |
1300*1000*2300 |
|
Weight |
kg |
200 |
