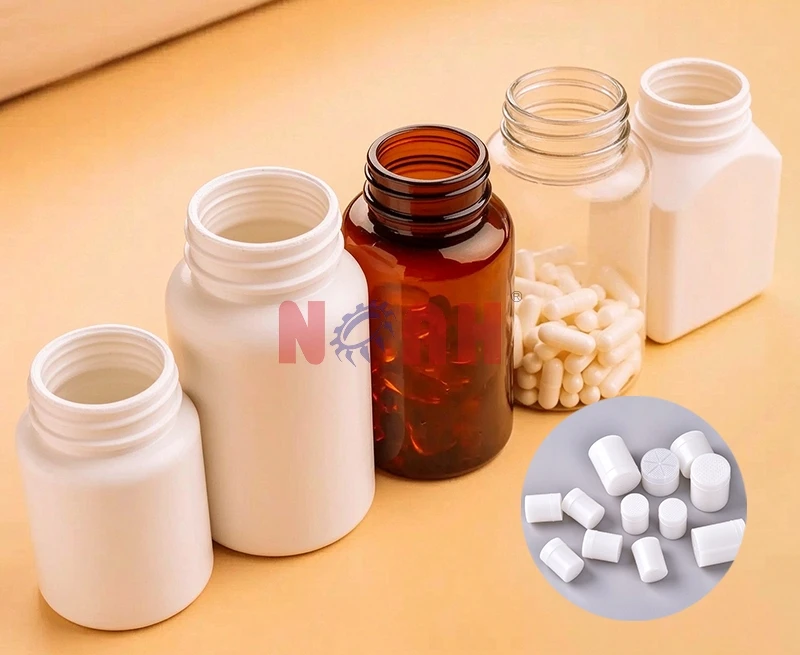

Desiccant Inserter (Solid) IS120/IS240

PLC-based whole-machine control.All sequences — feeding, escapement, drop timing, conveyor indexing and rejection — are coordinated by a PLC; operators set and adjust parameters directly on the HMI.

Japanese Panasonic variable-frequency main drive.  The main motor is an original Panasonic VFD stepless speed-regulation motor, giving stable, continuously adjustable output matched to the upstream counting machine and downstream capper.

Vibratory bowl orienting feeder.The operator loads rigid desiccant canisters into vibrating hopper A; the vibrator feeds them onto the turntable, which aligns them single-file along the channel.

Precision escapement at position E.Releases one canister at a time; when the bottle-presence sensor on the conveyor confirms a bottle, E fires once and the canister drops automatically into the bottle.

Automatic bottle indexing.Once the positioning time matches the PLC-set parameters, the pneumatic system advances the conveyor to the next bottle — fully unattended, continuous operation.

Programmable multi-drop per bottle. The PLC can be set to load one, two or more canisters per bottle according to the moisture-protection requirement.

Dual-cylinder drop verification.Two air cylinders actuate the material-detection sensor at E to confirm every canister has actually dropped; bottles missing desiccant are rejected automatically.

Quick changeover, few format parts. Size-related components are minimized; molds / guides are swapped quickly and conveniently, so the machine adapts to bottles of different specifications with short changeover time.

Material-of-construction.Outer frame in stainless steel (SUS304 grade); all parts in contact with the solid desiccant are in 316-grade stainless steel.

GMP-compliant design.Construction, finish and cleanability meet pharmaceutical GMP requirements.
