Features & Benefits

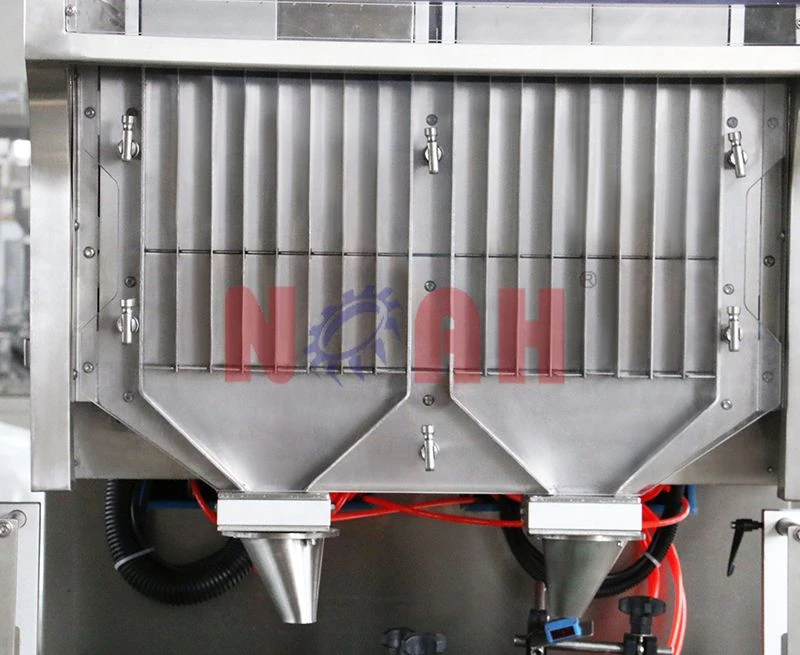

16-channel counting + dual-track conveyor; compact design, dual-nozzle high-speed filling, effectively boosting output.
Advanced independent optical inspection system, 100% counting accuracy for all standard/irregular tablets/capsules; error <1‰, dust-resistant to maintain speed and precision.

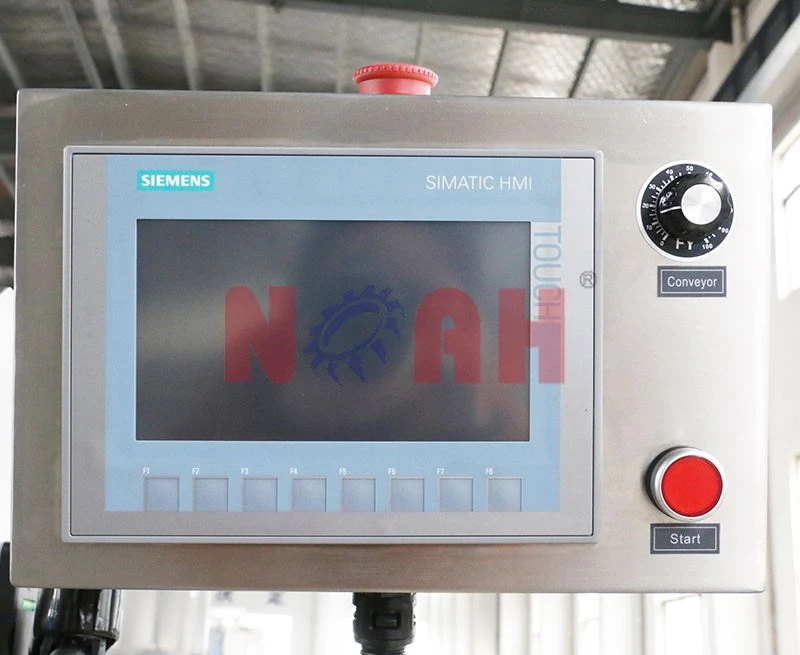

Imported PC-based industrial control computer + Chinese HMI; touch screen control, simple operation and on-screen troubleshooting.
High versatility: no structure change needed for tablets, capsules, gummy candies, special-shaped products; easy specification switching.

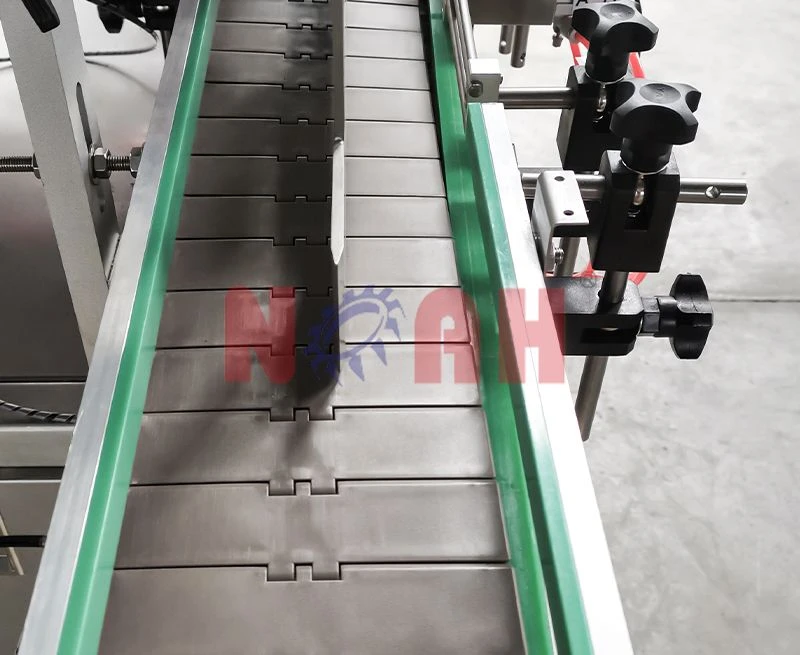

Low-noise stable operation; dual-track conveyor for smooth bottle feeding; full protection for reliable running.
High intelligence: auto-stop for no-bottle/blockage; fault diagnosis + 30 sets parameter storage (no re-debugging when changing products).
Flexible application: standalone use or integration into bottling lines; with automatic bottle separation.
Three-stage vibration feeding, adjustable frequency, fast and smooth conveying without product damage.
Cylinder bottle positioning, fast and accurate, improving production continuity.
Easy maintenance: embedded buckle design, simple product adjustment and cleaning, time-saving.
Durable & hygienic: stainless steel + high-grade aluminum alloy, firm, attractive and meets hygiene standards.
Equipped with complete components; high-speed PLC stably controls counting, bottling and monitoring.
Application
Widely applied in nutraceuticals, pharmaceuticals, food & beverage, pesticide, chemical and other industries.
Ideal for automatic counting and filling of solid preparations, including all standard/irregular tablets, capsules, caplets, soft gels, pills, sugar-coated tablets, gummy bear candy, transparent capsules and special-shaped tablets.
Suitable for both standalone production and integration into complete bottling production lines, meeting the high-accuracy, high-efficiency and stable operation requirements of related industries.
Specitications
|
ITEM |
GS-16 |
|
|
Vibrating Channel |
- |
16 |
|
Capacity |
bottles/min |
20-80 |
|
Counting Range |
grains |
1-9999 |
|
Tablet/Capsule Size |
- |
Tablet:3-22mm Capsule:00-5 |
|
Diameter of Vessel |
mm |
Φ25-Φ75 |
|
Height of Vessel |
mm |
≤240 |
|
Air Pressure |
mpa |
0.4-0.6 |
|
Air Consumption (Clean Air) |
L/min |
150 |
|
Total Power |
kw |
3.8 |
|
Power Supply |
- |
AC220V 1P 50-60HZ |
|
Overall Size |
mm |
1800*1550*1600 |
